EZVIZ HP7
Pro
Visiophone connecté à reconnaissance d’empreinte palmaire en 4K
| Specifications | |
|---|---|
| Model | CS-HP7-R400-1W2TFD (Pro) |
| Outdoor Panel Parameters | |
| Image Sensor | 1/2.8" Progressive Scan CMOS (supports low light sensitivity) |

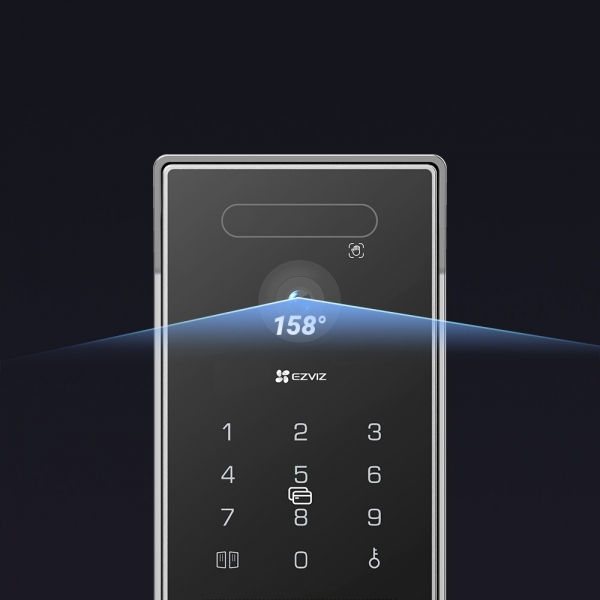

| Lens | 2.0 mm @ F1.6,view angle: 158° (diagonal) |
| Day & Night | IR-cut filter with auto-switching |
| Max. Resolution | 4K (3840 × 2160) |
| DNR | 2D / 3D DNR |
| Video Compression | H.265 / H.264 |
| Frame Rate | Max: 15fps; Self-adaptive during network transmission |
| Connection and Function | |
| Connection Method | Wired connection (2-Wired, capable with 4-Wired), digital signal transmission |
| Transmission Distance | Φ 2 x 0.75mm , max. 50m Φ 2 x 1.5mm , max. 100m |
| Open the Door (Gate) | Support 2 wiring ports. 1-10m distance. The intercom panel provides a “dry”-contact connection, without an electric current, to connect to the button for automated gate, gate breaking capacity: 12V / 2A |
| Unlock (Electric strike plate) | Support 2 wiring ports. 1-10m distance. The electric strike plate or lock that you order must have a mechanical memory; the power supply to the electric strike plate or lock must not exceed 12V / 1.1A, otherwise should do as user manual. |
| Door Open Methods | 1. Palm vein scan unlocking 2. Face recognition unlocking 3. RFID badge unlock (CPU card × 3 pcs) 4. App remote unlocking 5. Indoor display unlocking 6. Passwords unlocking 7. QR code unlocking |
| Outdoor Doorbell Interface | |
| Audio Input | Built-in high-sensitivity microphone |
| Audio Output | Built-in high-power speaker |
| Doorbell Button | Supports, 1 button. Can set the light on or off. |
| Name Card | Supports, handwritten. 3 cards stickers included (1 sticker already on the intercom panel). Can set the light on or off. |
| Terminal | Two wiring ports to connect screen. Two wiring ports to connect gate. Two wiring ports to connect electric strike plate. |
| Functions | |
| Intelligent Alarm | Smart human motion detection, Lingering Detection |
| Tamper Alarm | Supports |
| Video Intercom | Long-distance video two-way talk |
| General (Ourdoor Panel) | |
| Operation Conditions | -30°C to 60°C , humidity 95% or less (non-condensing) |
| Ingress Protection Grade | Waterproof, with shield cover |
| Size | 191.8 × 91 × 40 mm (7.6 × 3.6 × 1.6 inch) |
| Power Supply | 24 V DC from screen |

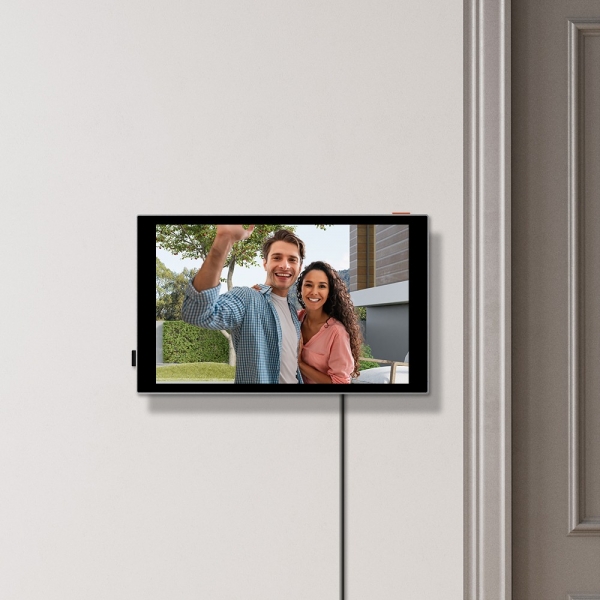

| Indoor Monitor | |
| Display size | 8” touch screen |
| Resolution | 1280 × 800 |
| Interface | |
| Audio Input | Built-in high-sensitivity microphone |
| Audio Output | Built-in high-power speaker |
| Button | Screen on / off button |
| Terminal | Two wiring ports are available for connecting the outdoor doorbell. Two wiring ports are available for connecting the power supply. |
| MicroSD Card | Supports microSD card (max. 512 GB) |
| Network Parameters | |
| Protocol | EZVIZ Cloud Proprietary Protocol |
| Interface Protocol | EZVIZ Cloud Proprietary Protocol |
| Protocol | EZVIZ Connect Protocol |
| Wi-Fi Parameters | |
| Wi-Fi Standard | IEEE 802.11a, 802.11b, 802.11g, 802.11n, 802.11ac, |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz; 5.15 GHz ~ 5.35 GHz; 5.47 GHz ~ 5.725 GHz |
| Channel Bandwidth | Supports 20 MHz @ 2.4 G, supports 80 MHz @ 5G |
| Security | WPA / WPA2 / WPA3, WPA-PSK / WPA2-PSK / WPA3-PSK |
| Transmission Rate | 11b: 11 Mbps, 11g: 54 Mbps,11a:54 Mbps, 11n: MCS7, 11ac:MCS9, 11ax:MCS11 |
| General (Indoor Monitor) | |
| Multiple Ringtones | Up to 20 ringtones |
| Functions | Live view, playback, two-way talk, video calL |
| Operation Conditions | 10°C to 45°C, humidity 95% or less (non-condensing) |
| Size | 200.3 × 123 × 15 mm (7.9 × 4.8 × 0.6 inch) |
| General (HP7 Pro Kit) | |
| Weight | Net weight: 1130 g (39.9 oz) With package: 2418 g (85.3 oz) |
| Power Supply | DC 24V / 1A power supply, adaptor (100- 240Vac |
| Power Consumption | 8 W, Max. 36 W |
| In the box | |
| In the box | - 8" Touch Screen Monitor |
| - Wall Bracket for Monitor | |
| - Power Adapter for Monitor | |
| - Intercom Panel (Doorbell) with a Weather-Proof Shield | |
| - Drill Template for Intercom Panel | |
| - Drill Template for Monitor | |
| - Screwdriver | |
| - Power Supply Jack Connector Cable | |
| - Badges × 3 | |
| - Screw Kit × 2 | |
| - Name Card × 3 | |
| - Wires and Wire Connectors × 2 | |
| - Regulatory Information × 3 | |
| - Quick Start Guide | |
| Certifications | |
| Certifications | CE / REACH / WEEE / RoHS |
