Local storage cards must be purchased separately. Cloud storage service is only available in certain market regions. Please verify availability before making a purchase.
The sales data are collected by EZVIZ from all of its traceable sales channels in the international markets (excluding mainland China) and refer to the total units sold of the C6N family (including the past C6N and H6c models that have an identical appearance) from the period 2022-2024.
The awards shown on this page include all the product design awards that EZVIZ as a company won from 2022 to 2024, and are not honors only for indoor cameras.
Data from EZVIZ Lab's test results under standard conditions. The video compression efficiency will vary with the frequency and complexity of the activity captured, as well as other environmental factors.

TY1 G1 3K

Keeps An Eye On Every Precious Moments

Specifications

Specifications
Specifications	CS-TY1-R220-1Q5WFL
Camera
Image Sensor	1/2.7" Progressive Scan CMOS
Shutter Speed	Self-adaptive shutter
Lens	4mm@F1.6, view angle: 90°(Diagonal), 75° (Horizontal), 41°(Vertical)
Lens Mount	M12
Day & Night	IR-cut filter with auto-switching
DNR	3D DNR
WDR	WDR
Compression
Video Compression	H.264 / H.265
Video Bit Rate	Adaptive bit rate.
Max. Resolution	2880*1620
Frame Rate	Self-adaptive during network transmission
Network
Smart Alarm	Motion Detection,Human Shape Detection
Wi-Fi Pairing	AP pairing / Bluetooth pairing
Protocol	EZVIZ Cloud Proprietary Protocol
Interface Protocol	EZVIZ Cloud Proprietary Protocol
Interface
Storage	microSD card slot (Max 512G)
Power	Type-C
Wired Network	RJ45 X 1 (10M / 100M self-adaptive Ethernet port)

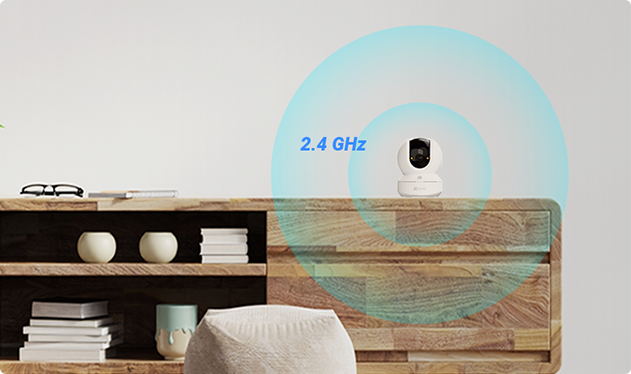

Wi-Fi
Standard	IEEE802.11b, 802.11g, 802.11n

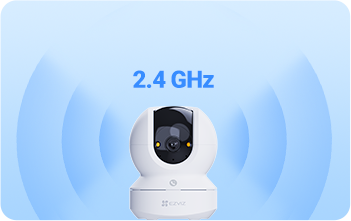

Frequency Range	2.4 GHz ~ 2.4835 GHz
Channel Bandwidth	2.4G: Supports 20MHz
Security	WPA, WPA2, WPA3, WPA/WPA2, WPA2/WPA3
Transmission Rate	11b 11Mbps,11g 54Mbps,11n MCS7,11ax MCS9
Output Power (EIRP)	19 dBm
Antenna Gain	0.51 dBi
General
Operating Conditions	-10°C to 45°C (14°F to 113 °F ), Humidity 95% or less (non-condensing)
Power Supply	DC 5V/1A
Power Consumption	Max.5W
IR Range	Max. 10m (32.81ft)
Dimensions	88mm x 88mm x 113mm (3.46" x 3.46" x 4.45")
Packaging Dimensions	105mm x 105mm x 190mm (4.13" x 4.13" x 7.48")
Bare Weight	233.5g (0.51lb)
In the box
In the box	- TY1 G1 Camera
	- Power Adapter
	- Power Cable
	- Drill Template
	- Mounting Plate
	- Screw Kit
	- Regulatory Information × 2
	- Quick Start Guide
Certifications
Certifications	CE / UL / WEEE / REACH / RoHS

TY1 G1 3K

Indoor Pan & Tilt Wi-Fi Camera

Keeps An Eye On Every Precious Moments

An All-Time Favorite Camera, Now Better Than Ever

A Human-Centered Design Heritage

Great Brands Don't Age. They Adapt.

An All-Rounder That Owns the Game

Crystal-Clear 3K Resolution

Unveils Every Precious Moment in 3K

360° Panoramic Coverage

Unlocks a Wider View of Home

Auto-Zoom Tracking Upon Human Detection

Stays Focused on What Matters Inside Home

Smart Color Night Vision

Experiences the Night in Living Color

Wide Dynamic Range

Reveals Details in Every Light

Auto-Patrol Mode

Checks in Your Home Right from Your Phone

Auto-Patrol Mode

Checks in Your Home Right from Your Phone

Two-Way Talk

Connects to Your Loved Ones Anytime, Anywhere

Privacy Design

Turns Off When You Need Privacy

Meant for Every Moment and Mode

Convenience Isn't Extra, It's Built In

Privacy Design

Turns Off When You Need Privacy
