EZVIZ C3W - Active deterrence with light and sound alarms

Detail
Specs
Support

C3W

• IP66 Dust & Water Prevention
• Dual-Antenna Wi-Fi
• Two-Way Audio
• Pre-Emptive Defense
Active deterrence with light and sound alarms
C3W
Active light and sound alarms for enhanced protection
Easily set up the Husky Dome by connectingand powering it with the same Ethernet cord.
Recording and intercom
The internal waterproof MIC supports audio pickup within five meters and video recording with sound.Support two-way audio with efficient loudspeakers.
Integrated with professional de-noising algorithm to filter background noise for enhanced voice quality.
Two-way audio with HiFi quality

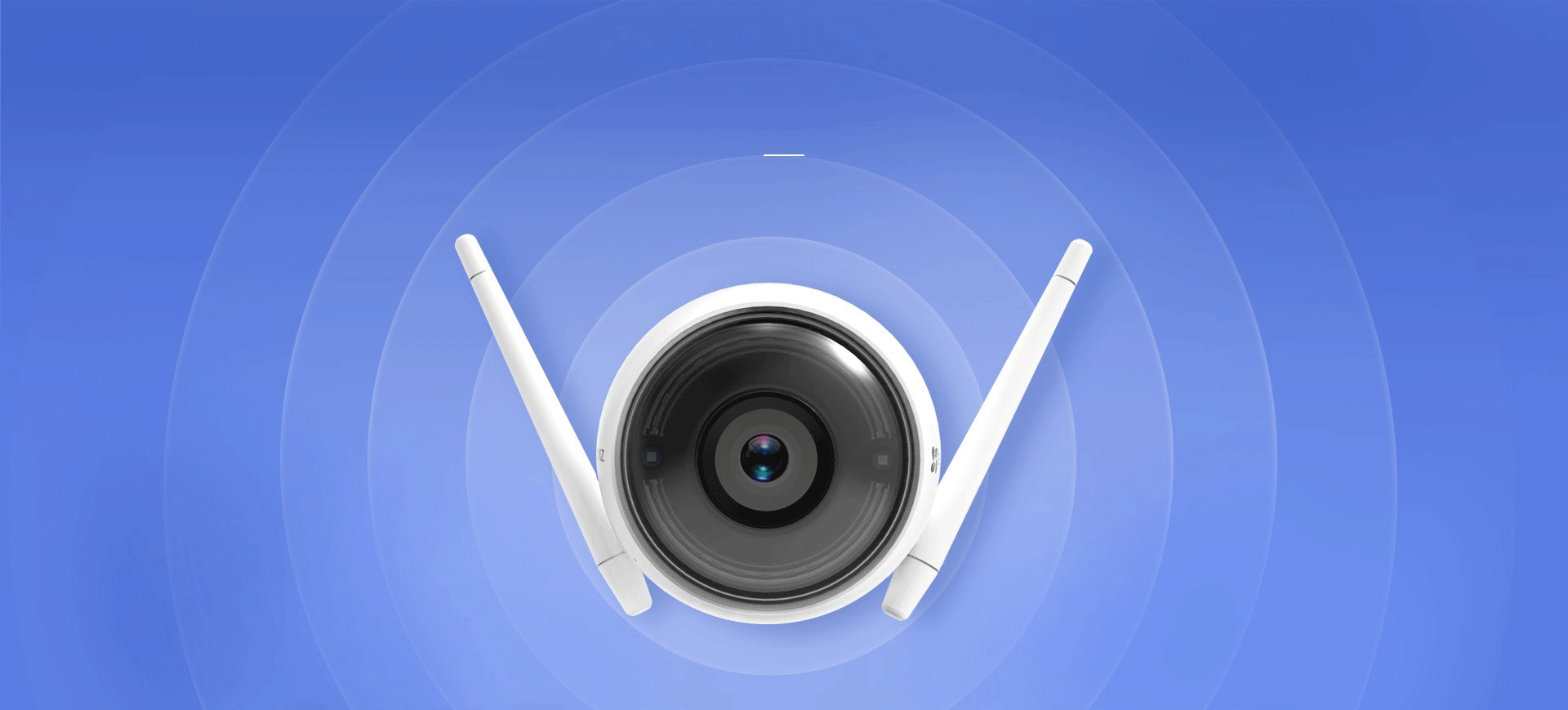

External powerful dual antenna ensure reliable wireless transmission
Remote transmission with strong penetration and anti-interference capabilities.

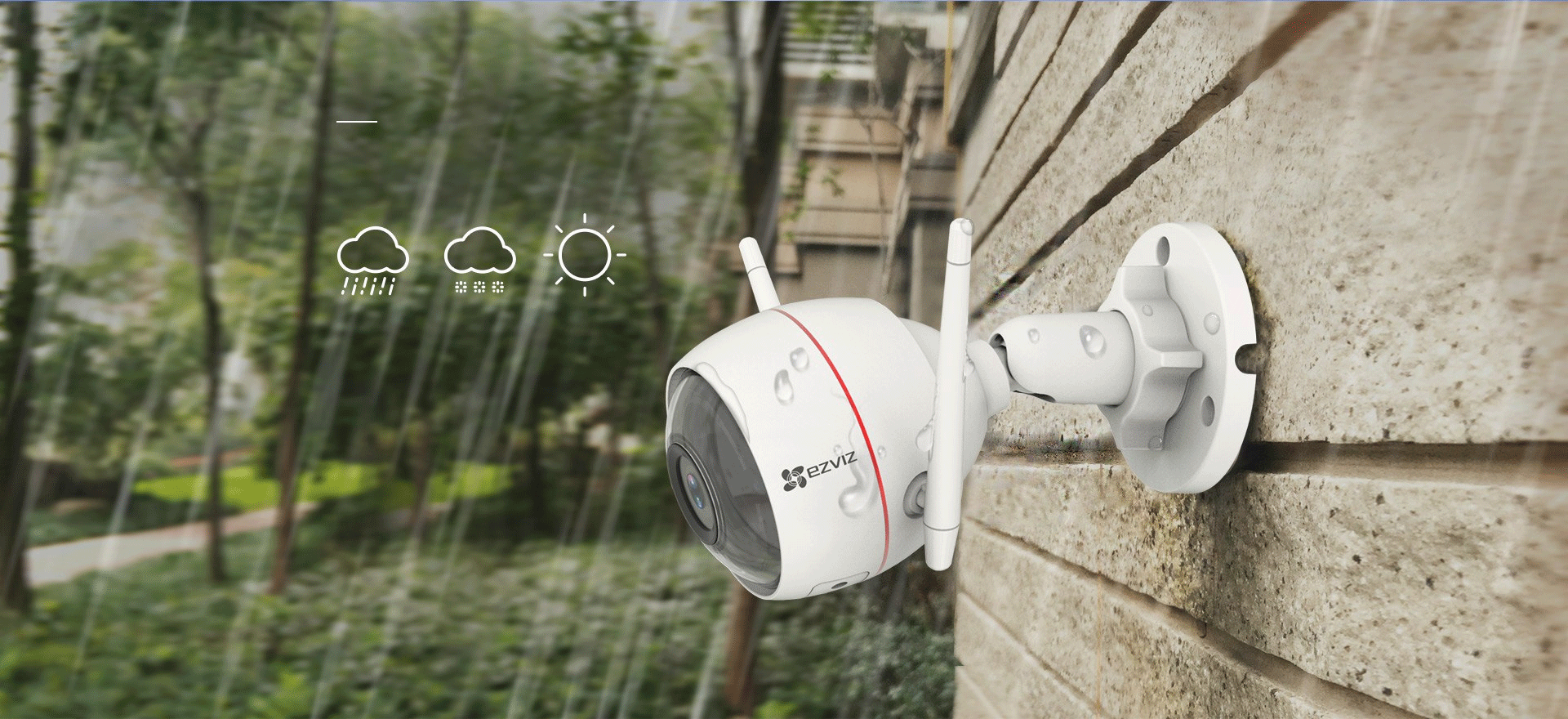

IP66 dust & water prevention
Resistant against rain, snow, and other weather conditions.
Night images of normal cameras
Night images of ezGuard series
30m night vision for omniscient surveillance
The integration of efficient infrared light, anti-reflection panel and ICR infrared filter enables excellent clarity at night.
Cardan shaft rotation Two installation methods Suspended Wall-mounted as you deem fit.
With Cardan shaft rotation, ezGuard supports both ceiling suspension and wall-mounted installation, based on your practical needs.
Multiple Storage Options
Save your recordings with flexible and secured solutions. The C3W comes with a built-in MicroSD card slot that can store up to 128 GB of recorded footage.
Supports Micro SD Card
EZVIZ NVR
Security at your fingertips.
With the EZVIZ App, you can capture, save, protect, and share what’s valuable to you.
Live View
Real-Time Talk
Instant Alerts
Video History
Up to 8x Zoom
Smart Home Enabled
EZVIZ app interface images are for illustrative purposes only.

C3W

Wall-Mounted Wi-Fi Camera. Active deterrence with light and sound alarms.

Specifications

Model Parameters
Model	CS-CV310-A0-1B2WFR	CS -CV310-A0-3B1WFR
Camera
Image Sensor	1/2.7” Progressive Scan CMOS	1/4” Progressive Scan CMOS
Minimum Illumination	0.02 lux @(F2.0, AGC ON), 0 lux with IR	0.02 lux @(F2.0, AGC ON), 0 lux with IR
Shutter Speed	Self-adaptive shutter	Self-adaptive shutter
Lens	2.8mm@ F2.2, Horizontal angle: 103° Diagonal angle: 118° 4mm@ F2.0, Horizontal angle: 87° Diagonal angle: 104° 6mm@ F2.0, Horizontal angle: 54° Diagonal angle: 62°	2.8mm@ F2.2, Horizontal angle: 92° Diagonal angle: 108° 4mm@ F2.0, Horizontal angle: 72° Diagonal angle: 86° 6mm@ F2.0, Horizontal angle: 36° Diagonal angle: 42°
Lens Mount	M12	M12
Day & Night	IR-cut filter with auto-switching	IR-cut filter with auto-switching
DNR	3D DNR	3D DNR
WDR	Digital WDR	Digital WDR
Compression
Video Compression	H.264	H.264
H.264 Type	Main profile	Main profile
Video Bit Rate	HD, Standard; Basic. Adaptive bit rate.	HD, Standard; Basic. Adaptive bit rate.
Max. Resolution	1920×1080	1280×720
BLC	Support	Support
Network
Storage	Support Micro SD card (Max. 128G)	Support Micro SD card (Max. 128G)
Smart Alarm	Intelligent motion detection	Intelligent motion detection
Wi-Fi Pairing	AP paring	AP paring
Protocol	EZVIZ cloud proprietary protocol	EZVIZ cloud proprietary protocol
Interface Protocol	EZVIZ cloud proprietary protocol	EZVIZ cloud proprietary protocol
General Features	Anti-Flicker, Dual-Stream, Heartbeat Messages, Mirror Image, Password Protection, Watermark	Anti-Flicker, Dual-Stream, Heartbeat Messages, Mirror Image, Password Protection, Watermark
Communication Interface	RJ45 10M/100M self-adaptive Ethernet port*1	RJ45 10M/100M self-adaptive Ethernet port*1
Minimum Network Requirements	2Mbps	2Mbps
Wi-Fi
Standard	IEEE802.11 b/g/n	IEEE802.11 b/g/n
Frequency Range	2.4 GHz ~ 2.4835 GHz	2.4 GHz ~ 2.4835 GHz
Channel Bandwidth	Supports 20MHz	Supports 20MHz
Security	64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK	64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Transmission Rate	11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps	11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps
General
Operating Conditions	-30°C ~ 60°C, Humidity 95% or less (non-condensing)	-30°C ~ 60°C, Humidity 95% or less (non-condensing)
Power Supply	DC 12V±10%	DC 12V±10%
Power Consumption	Max. 6W	Max. 6W
IP Grade	IP66	IP66
IR Range	Max. 30meters	Max. 30meters
Product Dimensions	150mm x 85mm x 72mm	150mm x 85mm x 72mm
Packaging Dimensions	252mm x 110mm x 92mm	252mm x 110mm x 92mm
Weight	326g	326g
