EZVIZ C3A&WLB - Wire-Free Camera LTE Base Station Kit

Detail
Specs
Support

C3A+WLB

C3A + WLB
A Smarter Security System
• Full HD (1080p) indoor and outdoor camera
• 100% wire free
• Night Vision
• Real-Time, Two-Way Audio
Wire-Free Camera LTE Base Station Kit
The C3A battery-powered camera is your personal security guard!This totally wireless camera can be placed anywhere you need it to go. Use the C3A independently, or pair it with the versatile WLB base station with built-in 4G LTE module to significantly extend battery life and functionality.
Longer Battery Life Means Less Worry
The long-lasting rechargeable battery allows the C3A to work for months on one charge. The battery life lasts even longer when paired with the WLB.

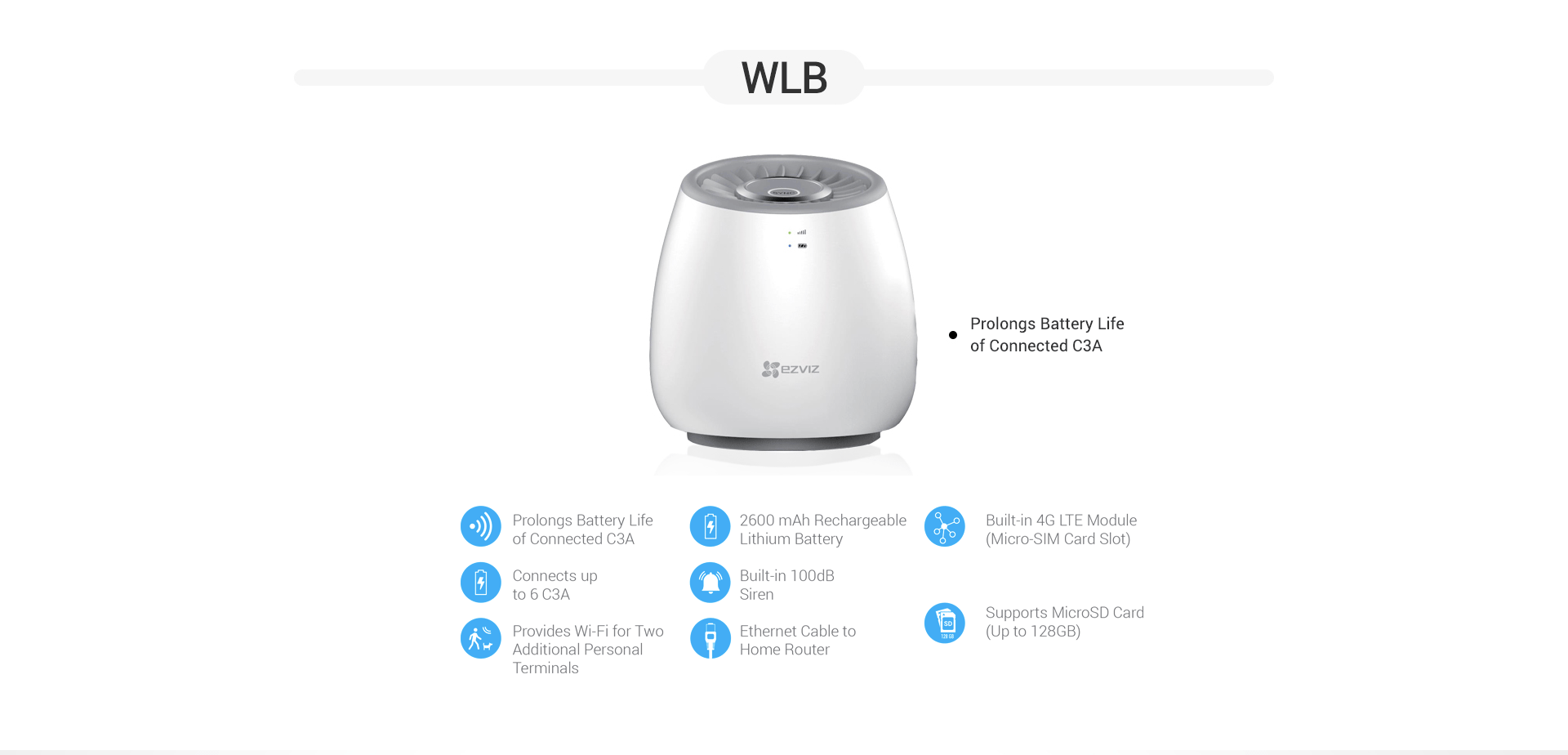

A Versatile Companion
The WLB connects and manages up to 6 C3A units at once. It can even functions as a router, providing 2.4 GHz and 5 GHz Wi-Fi connections to two terminal devices.
Comprehensive Accessories to Choose from
A wide range of accessories are also available to enhance your experience, including a dual-slot battery charger, a back-up battery, and a mounting bracket for long-lasting protection and good usability.
We Have Your Back
Even when power or network connections go out, the WLB can continue operating for more than an hour thanks to its built-in rechargeable battery and 4G LTE module (Micro-SIM card sold separately), reliably providing Wi-Fi connections to the C3A.
With the EZVIZ App and EZVIZ Studio Software, you can capture, save, protect, and share what’s valuable to you.
Security at Your Fingertips
Live View
Real-Time Talk
Instant Alerts
Video History
Up to 8x Zoom
Smart Home Enabled
EZVIZ app interface images are for illustrative purposes only.

C3A+WLB

Pair the C3A with the WLB base station to extend battery life and functionality.

Specifications

Model Parameters
Model	C3A
System Parameters
Processor	High-Performance Embedded SOC Processor
Operation System	Embedded RTOS
Camera Parameters
Image Sensor	1/4” 2-Megapixel sensor
Field of View	Diagonal FOV 125°
Night Vision	Up to 7.5 meters
Video Parameters
Compression Standard	Smart H.264
Max. Resolution	1920 × 1080, FHD
Frame Rate	Max. 15fps Adaptive frame rate of network transmission
DNR	3D DNR
WDR	DWDR
BLC	Support
Audio Parameters
Audio Input	Built-in omni-direction microphone
Audio Output	Built-in loudspeaker
Audio Quality	Noise suppression
Network Parameters and Storage
Wireless	Built-in 2.4G Wi-Fi
Network Configuration	AP Pairing
Minimum Network Requirement	2Mbps
Local Storage	Support Micro SD Card (Up to 128GB)
Cloud Storage	EZVIZ Cloud Storage
Event
Sensor	PIR Motion Detection Sensor
Alarm	Customized Alert Area
Siren	N/A
General
Operating Conditions	-4 ~ 113ºF (-20 ~ 45ºC), Humidity 95% or less
Power Supply	5500mAh Rechargeable Lithium Battery or 5V DC
Power Consumption	Max. 5W
Ingress Protection Grade	IP65
Product Dimensions	56.08mm x 70.02mm x 92.09mm
Packaging Dimensions	118.5mm x 130mm x 215mm
Weight (g)	215g

Specifications

Model Parameters
Model	CS-WLB-EUP
Network Interface	1 RJ-45 10/100Mbps Self-adaptive Ethernet WAN interface 1 RJ-45 10/100Mbps Self-adaptive Ethernet LAN interface
Network Connection	Wired , wireless uplink router connection or 4G direct connection
Wireless Parameters	Wi-Fi: 2.4GHz&5GHz Radio Frequency: 868Mhz
Minimum Network Requirement	10mbps. Additional personal terminals’ traffic (if any) is not included
Wireless Access Ability	Support access 6 wire-free cameras and 2 additional terminals like mobile phone, tablet and laptop.
Video/Audio Input	Support access up to 6 battery cameras
Connection Configuration	Camera: sync button on base station Personal devices: Wi-Fi name and password.
4G Module Parameters	EU frequency band: GSM/GPRS/EDGE:850M/ 900M/1800M/1900M UMTS: B1/B8 FDD-LTE: B1/B3/B5/B7/B8/B20 TDD-LTE: B40
Local Storage	One SD card slot on the base station, support Micro SD card memory minimum 8GB, maximum 128G. Recommendation compatibility class 10 or above.
Siren	100dB Built-in Siren
Button	One SYNC button on the top of the base station One Power button on the back of the base station One Reset button on the back of the base station. (hold 10 seconds to RESET.)
Power Supply	Input: AC 100V—240V～50/60Hz Output: DC 12V/1.5A
Battery Type	2600mAh Rechargeable Lithium Battery
Battery Working Time	Battery Pack Capacity: 18WH Typical Working Status Power Consumption: 9W Typical Working time approximate 2 hour Recharging time approximate 4 hours
Operating Conditions	0 ~ 40ºC ( 32 ~ 104ºF ), Humidity 10% ~ 90%. Indoor use only.
Product Dimensions	142mm x 130mm x 130mm
Net Weight	762g (1.68 lbs)
