EL3
Illuminate your home, guard your safety

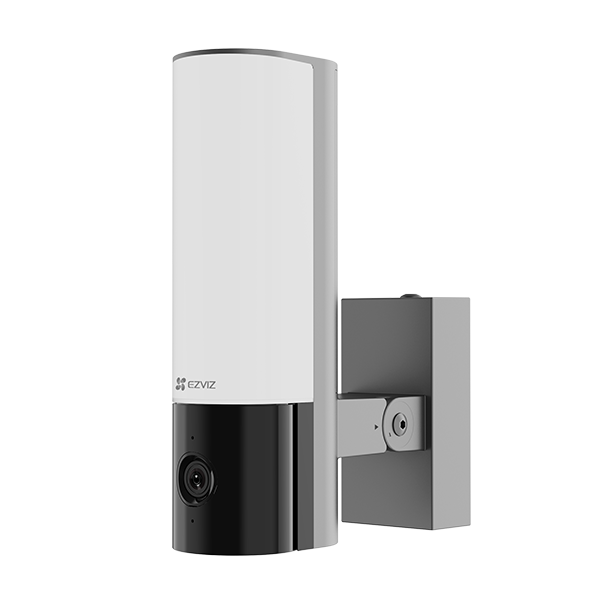

EL3 Smart Security Wall-Light Camera
Specifications
Specifications
Model CS-EL3
Light Parameters
Lamp 1
LED SMD LED
Brightness 780LM(+/-10%), Adjustable brightness
Color Temperature 3000K-5700K, Adjustable color temperature
Light Angle Horizon 180°, Vertical 140°
Open Light Method Manually, schedule, human-shape detection, vehicle-shape detection
Ingress Protection Grade Weatherproof design
Camera Parameters
Max. Resolution 3MP(2048*1536)
Camera Viewing Angle 130° (Diagonal), 99° (Horizontal), 71° (Vertical)
IR Range Max. 15m
Ingress Protection Grade IP65
Video Parameters
Compression Standard H.264 / H.265
Frame Rate Max. 25 fps, self-adaptive during network transmission
DNR 3D DNR
WDR Supports
Audio Parameters
Audio Input Built-in Omni-direction microphone
Audio Output Built-in loudspeaker
Audio Quality Noise suppression
Function
Smart Alarm AI Human Detection , Vehicle Detection ,Vehicle license plate recognition
Dual-antennas Supports
Two-way Talk Supports
General Function Anti-flicker, dual-stream, heart beat, password protection, watermark
Network Parameters
Wireless 2.4GHz and 5GHz Wi-Fi 6
Network Configuration BT Pairing and AP Pairing
Storage
Local Storage Supports microSD card (Up to 512 GB)
Cloud Storage EZVIZ Cloud Storage*
General
Working Temperature -30°C to 50°C (-20°F to 120°F), humidity 95% or less (non-condensing)
Power 100V-240V
Power Consumption 25W
Product Dimensions 60 × 136 × 229.7 mm
Package Dimensions 310 × 226 × 83 mm
Net Weight 1.74KG (with package)
Work with Google Assistant, Amazon Alexa
Light Source Replacement Shall only be replaced by the manufacturer or service agent or a similar qualified person
Recommended Power Cable H05RN-F(3x1.0mm²)
In the box
In the box - EL3 Security Camera
- Drill Template
- L-Shaped Wrench
- Wall Bracket
- Bracket Screw
- Buckle
- Screw Kit
- Regulatory Information
- Quick Start Guide
Certifications:
Certifications: CE / ROHS / REACH / WEEE / ERP / UKCA
