| Specifications |
|---|
| Model | CS-EB8-R200-1M8W4GA-CF |
|---|
| Camera |
|---|
| Image Sensor | 1/2.8 8-Megapixel
Progressive Scan CMOS Sensor |
|---|
| Minimum Illumination | 0.01 Lux @(F1.2, AGC ON), 0
Lux with IR |
|---|
| Shutter Speed | Self-adaptive shutter |
|---|
| Lens | 4mm@ F1.2 Diagonal angle:
104°, Horizontal angle: 83° Vertical angle:44° |
|---|
| PT Angle | Pan: 340°, Tilt: 75° |
|---|
| Day & Night | IR-cut filter with auto
switch |
|---|
| DNR | 3D DNR |
|---|
| Night Vision | 15 m |
|---|
| Video & Audio |
|---|
| Max Resolution | 4K (3840 × 2160) |
|---|
| Frame Rate | 15fps. Self-adaptive during
network transmission |
|---|
| Video Compression | H.265 / H.264 |
|---|
| Video Bit Rate | Ultra-HD; Full HD; Hi-Def;
Adaptive bit rate. |
|---|
| Audio Bit Rate | Self-adaptive |
|---|
| Max. Bitrate | 4 Mbps |
|---|
| Function |
|---|
| Smart Alarm | AI-powered human shape
detection, AI-powered vehicle shape detection, AI-powered wild animal
detection |
|---|
| Two-Way Talk | Supports |
|---|
| General Function | Anti-Flicker, Heart Beat,
Password Protection, Watermark |
|---|
| Network |
|---|
| Wi-Fi Standard | IEEE802.11b, 802.11g,
802.11n, 802.11ax |
|---|
| Frequency Range | 2.4 GHz~2.4835 GHz |
|---|
| Channel Bandwidth | Supports 20 MHz |
|---|
| Security | 64/128-bit WEP, WPA/WPA2,
WPA-PSK/WPA2-PSK |
|---|
| Transmission Rate | 11b: 11Mbps, 11g: 54Mbps,
11n: 72Mbps, 11ax: 114Mbps |
|---|
| Wi-Fi Pairing | AP pairing |
|---|
| Protocol | EZVIZ Cloud Proprietary
Protocol |
|---|
| Interface Protocol | EZVIZ Cloud Proprietary
Protocol |
|---|
| Minimum Network
Requirement | 8 Mbps |
|---|
| 4G LTE Frequency Bands | EU: LTE FDD:
B1/B3/B5/B7/B8/B20/B28, LTE TDD: B38/B40/B41 , LA： LTE TDD:
B1/B2/B3/B4/B5/B7/B8/B12/B 17/B28/B66, LTE TDD: B38/B40 |
|---|
| Storage |
|---|
| Local Storage | Supports microSD card (max.
512 GB) |
|---|
| Cloud Storage | Supports EZVIZ CloudPlay
storage (Subscription required) |
|---|
| General |
|---|
| Operating Conditions | -20 °C to 50 °C (-4 °F to
122 °F), Humidity 95% or less (non-condensing) |
|---|
| IP Grade | IP65 |
|---|
| Power Supply | DC 5V/2A, (Adapter needs to
be purchased separately) |
|---|
| Battery Capacity | 10,400 mAh |
|---|
| Power Consumption | Max.10 W |
|---|
| Specifications |
|---|
| Model | CS-PSP8-R100-3M |
|---|
| Performance Parameter |
|---|
| Power Voltage | 5.4V ± 5% |
|---|
| Power Current | 1.48A ± 5% |
|---|
| Open Circuit Voltage | 6.8V ± 5% |
|---|
| Short Circuit Current | 1.64A ± 5% |
|---|
| Max. Power | 8W ± 5% |
|---|
| Interface | Type-C |
|---|
| Solar Cell Efficiency | ≥ 22% |
|---|
| Operation Temperature | -20°C ~ 60°C (-4°F ~ 140°F)
Humidity 90% or less (non-condensing) |
|---|
| IP Grade | IP65 |
|---|
| Solar Cell Type | Monocrystalline solar
cells |
|---|
| Power Cable Length | 3 meters |
|---|
| General |
|---|
| Product Dimensions | Camera: 184 × 102 × 168 mm
(7.24 × 4.02 × 6.61 inch) |
|---|
| Solar Panel: 267.3 × 186.5
× 17.5 mm (10.51 × 5.83 × 0.69 inch) |
| Packaging Dimensions | 300 × 204 × 175 mm (11.81 × 8.03 × 6.89 inch) |
|---|
| Product Weight | Camera: 810 g (28.57
oz) |
|---|
| Solar panel: 428 g (15.10
oz) |
| Weight with Package | 2131 g (75.18 oz ) |
|---|
| In the box |
|---|

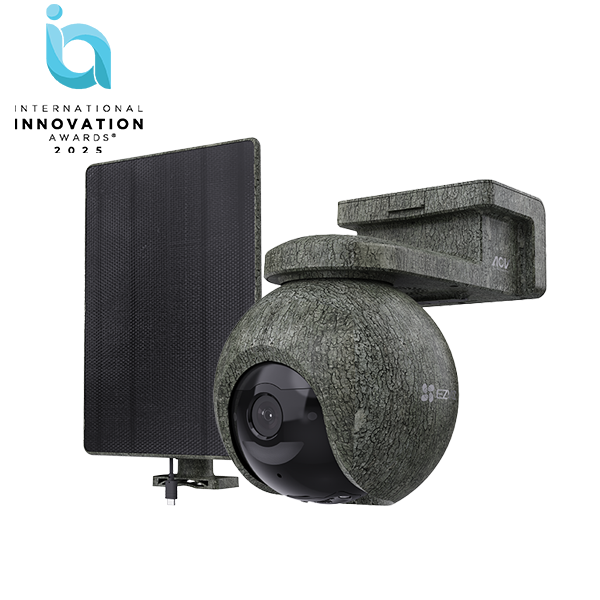

| In the box | - EB8 Pro Ranger
Camera |
|---|
| - Solar Panel 8W |
| - Drilling Template |
| - Adjustable Mounting
Bracket |
| - Clamp Band × 2 |
| - Clamp Adapter
Bracket |
| - Screw Kit x 2 |
| - Power Cable |
| - Quick Installation
Guide |
| -Regulatory Information x
3 |
| - Quick Start Guide |
| Certifications |
|---|
| Certifications | CE / REACH / WEEE /
RoHS |
|---|
