Detail

360° plus 3K, means unparalleled viewing experience

You can’t know well enough until you see it all. The camera’s pan-and-tilt design and 3K work in tandem to give you the whole picture with stunning details. There is no more grey area or missed detail in your home protection.

On-device AI for smarter detection

The camera’s on-board AI algorithm helps it identify moving people and vehicles in particular. It reduces alerts caused by falling leaves or flying insects, and informs you when someone parks in your property area without permission.

AI-Powered Human / Vehicle Shape Detection

Customizable Detection Zone

No Subscription Fee

A smart eye that locks on, zooms in and follows

When a human motion is detected, the C8c 3K will automatically rotate to track its movement and zoom in to record the activity. When in action, it makes it hard for your loved ones to stay out of sight.

Front Yard

Front Door

Garage

Front Yard

Actively guards your home

Upon detection of intruders, the camera will set off a loud siren and flash spotlights for on-site deterrence.

Communcation at anytime

Simply use your smartphone to see, hear and talk to anyone who shows up at your property area.

Vivid night vision

Rendering everything vividly clear even in the night, the C8c 3K makes sure that no one can easily sneak in under the cover of darkness.

Stable Wi-Fi connection

The C8c 3K boosts up to 220m Wi-Fi coverage thanks to its high-performance dual antennas⁵. It also offers wired options for further convenience.

Durable design for outdoor

To better protect your property, the camera is weatherproof to deliver long-standing performance, even in tough weather conditions.

Hands-free control

With integration to your voice assistants, you can pull up the video feed by simply saying “Alexa” or “Hey Google.”

Dual storage options

Safely store important moments or cute memories on a large local storage card, or by subscribing to the EZVIZ CloudPlay.

H.265 Video Technology

H.265 creates a smoother viewing experience while only using about 50% of the datastorage space required by cameras with H.264.

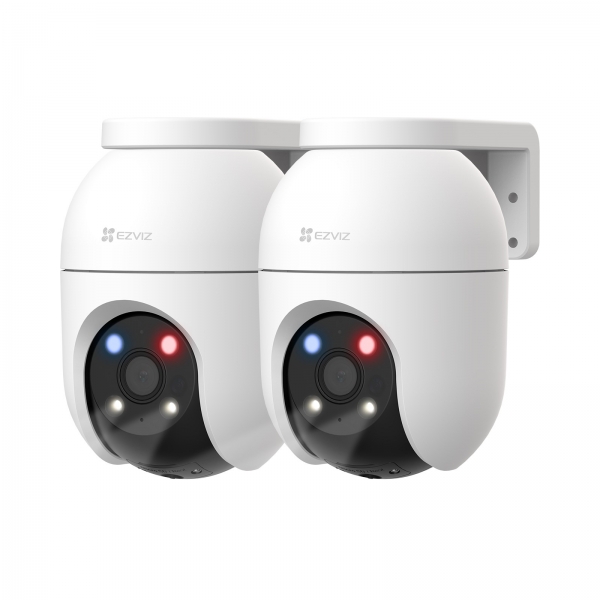

C8c 3K
All-around smart protection with exceptional vision
C8c 3K
Specifications
Specifications
Model CS-C8c-5MP
Camera
Image Sensor 1/3" Progressive Scan CMOS
Shutter Speed Self-adaptive shutter
Lens 4mm@ F1.6, viewing angle: 48° (Vertical), 91°(Horizontal), 108° (Diagonal)
PT Angle Pan: 350°, Tilt: 80°
Minimum Illumination 0.5 Lux @(F1.6, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories)
Lens Mount M12
Day & Night IR-cut filter with auto switch
DNR 3D DNR
WDR Digital WDR
Black & White Night 30m / 98ft
Video & Audio
Max. Resolution 2880 × 1620
Frame Rate Max: 30fps; Self-Adaptive during network transmission
Video Compression H.265 / H.264
H.265 Type Main Profile
Video Bit Rate Ultra-HD; Hi-Def; Standard. Adaptive bit rate.
Audio Bit Rate Self-Adaptive
Max. Bitrate 4Mbps
Network
Wi-Fi Standard IEEE802.11b, 802.11g, 802.11n
Frequency Range 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth Supports 20 MHz
Security WPA-PSK / WPA2-PSK
Transmission Rate 11b: 11Mbps, 11g: 54Mbps,11n: 72Mbps
Wi-Fi Pairing AP pairing
Protocol EZVIZ Cloud Proprietary Protocol
Interface Protocol EZVIZ Cloud Proprietary Protocol
Wired Network RJ45 × 1(10M/100M Adaptive Ethernet Port)
Storage
Local Storage MicroSD Card Slot (Up to 512GB)
Cloud Storage EZVIZ CloudPlay Storage
Function
Smart Alarm AI-Powered Human Shape Detection / Vehicle Shape Detection / Motion Detection
Auto Tracking Supports
Customized Alert Area Supports
Two-way Talk Supports
Preset Locations Supports
General Function Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark
General
Operating Conditions -30°C to 50°C (-22 °F to 122 °F), humidity 95% or less (non-condensing)
IP Grade Weatherproof Design
Power Supply DC 12V / 1A
Power Consumption MAX. 12W
Dimensions 102.27 × 128.61 × 147.05 mm (4.03 × 5.06 × 5.79 inch)
Packaging Dimensions 140 × 140 × 192 mm (5.51 × 5.51 × 7.56 inch)
Weight Net Weight: 506 g (17.85 oz) With Package: 816 g(28.78 oz)
In the box
In the box - C8c 3K Camera
- Drill Template
- Screw Kit
- Waterproof Kit
- Power Adapter
- Regulatory Information
- Quick Start Guide
Certifications
Certifications CE / UKCA / UL / WEEE / RoHS / REACH
