HGD2 Photocells

HGD2
Photocells
Works with all EZVIZ gate opener
Control your gate remotely and easily

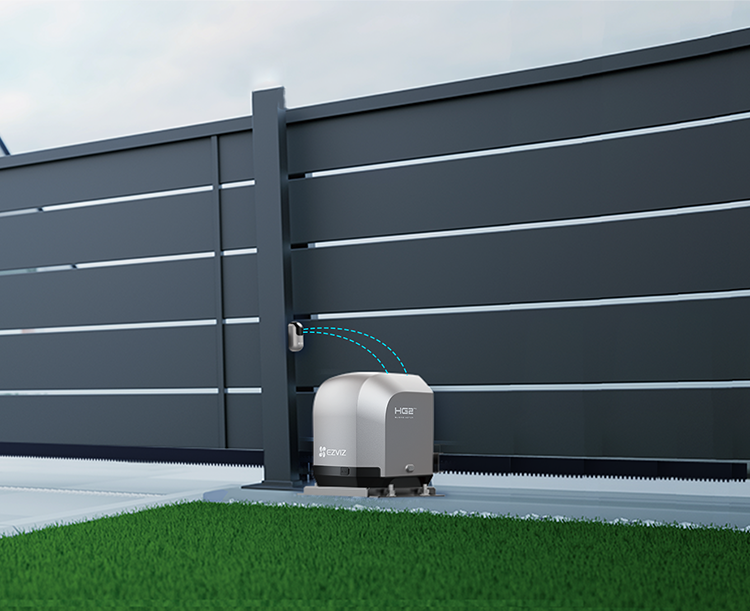

The HGD2 photocells add an extra layer of safety to gate openers. A transmitter and receiver create an invisible infrared beam across the gate’s path. If a person, pet, or vehicle breaks the beam, the gate can stop or reverse automatically, helping prevent accidents and protecting both your family and your property.
Main Features
Infrared Sensors
2-Wire Installation
Weatherproof Design
Up to 10 Meters (between two sensors)

HGD2 Photocells

Control your gate remotely and easily

Specifications

Specifications
Model	CS-HGD2-R100
Content in a Pair	1 TX transmitter and 1 RX
Power Supply	12V DC
Maximum Rated Power	0.8W (TX & RX combined)
Input	1 normally closed dry contact output 1 normally open dry contact output
Distance	Up to 10 meters
Operating Conditions	-30°C to 60°C, ≤95% RH (non-condensing)
Protection Rating	IP55

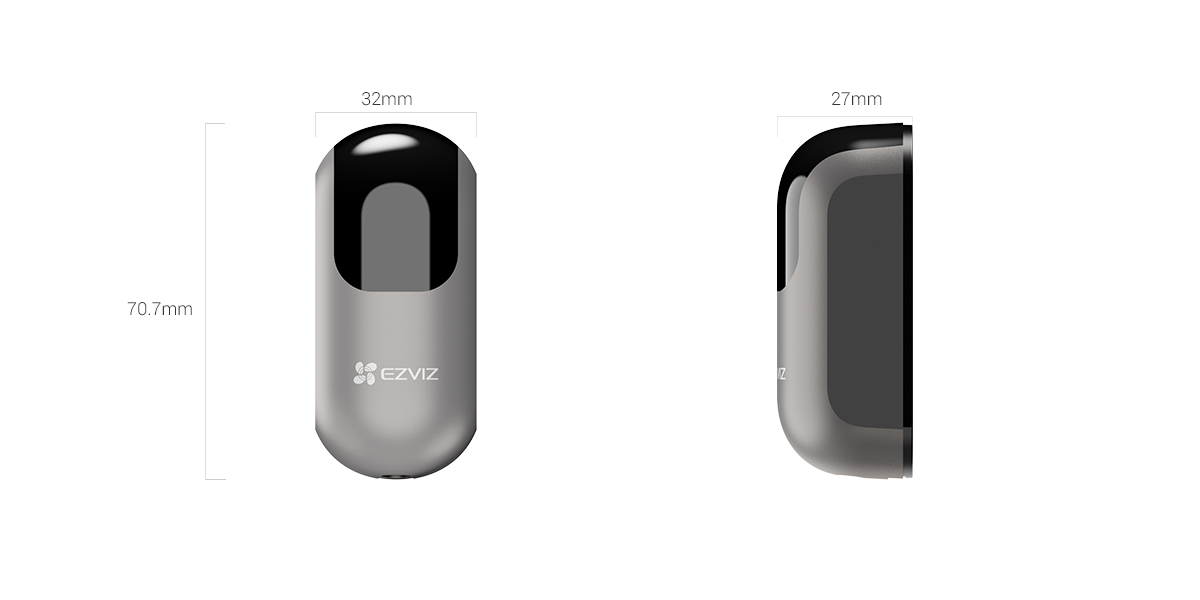

Size (without Package)	70.7 × 32 × 27 mm
Size (with Package)	82 × 38 × 70.5 mm
Weight (without Package)	52.46 g
Weight (with Package)	74.15 g
In the box
In the box	- Photocellule TX & RX
	- Screw Kit
	- Regulatory Information
Certifications
Certifications	CE / REACH / WEEE / RoHS
