CB90f Triple Kit

Triple-Lens Wi-Fi Battery Camera + Solar Panel 8W

What’s New On EZVIZ’s First Triple-Lens Battery Camera

Triple 3K Lenses

2.8mm Upper Lens

6mm + 12mm Dual Bottom Lenses

Up to 12x Mixed Zoom

Ultra-Wide 360° Coverage

Co-Detection with Auto-Zoom Tracking on People

Always-On Video Mode with 8W Solar Panel¹

Local & Free Familiar Face Recognition

Weatherproof Design

Active Defense with Red-Blue Warning Light

Local & Cloud Storage2

Triple 3K Lenses

2.8mm Upper Lens

6mm + 12mm Dual Bottom Lenses

Up to 12x Mixed Zoom

Ultra-Wide 360° Coverage

Co-Detection with Auto-Zoom Tracking on People

Always-On Video Mode with 8W Solar Panel1

Local & Free Familiar Face Recognition

Weatherproof Design

Active Defense with Red-Blue Warning Light

Local & Cloud Storage²

See Wider

FOV 132°

2.8mm Upper Lens

See Further

360° Panoramic Coverage
Up To 12x Mixed Zoom

6mm + 12mm Dual Bottom Lenses

See Wider

FOV 132°

2.8mm Upper Lens

Triple 3K Lenses

Protects More with Triple Lenses in 3K Clarity

Featuring a unique triple-lens design with one lens on top and two below, the camera captures more of your surroundings in sharp 3K clarity.

See Further

360° Panoramic Coverage
Up To 12x Mixed Zoom

6mm + 12mm Dual Bottom Lenses

Triple Motors with Dual Rotations

Rotates Upper & Bottom Lenses Independently

Thanks to its innovative triple-motor design, the upper lens can pan remotely while the bottom lenses keep protecting the main area, with no corner left unwatched.

EZVIZ Triple-Motor CB90f with Dual Rotations

Remote Pan

Most Dual-Motor Camera with Single Rotation

Fixed View

EZVIZ Triple-Motor CB90f with Dual Rotations

Remote Pan

Most Dual-Motor Camera with Single Rotation

Fixed View

Flexible Dual-Lens Viewing

Enjoys Versatile Coverage in One Camera

With three lenses working in flexible angles, you can easily adjust how the camera keeps on eye on your space.

Scenario 1

Keep an eye on what’s far away

Scenario 2

Watch more of your home at once

F/12 mm Ultra-Close View

F/2.8mm Wide-Angle View

F/6mm Close-Up View

Up to 12x Mixed Zoom

Zooms in up to 12x Smoothly to See Farther

Details that were once too far to see clearly are now within view. From people walking up your driveway to cars approaching your home, important details now stay crystal-clear.

6x Mixed Zoom

12x

Lag-Free Mixed Zoom

12x Lag-Free Mixed Zoom

2x Optical Zoom For Closer Details

2x

Optical Zoom
EZVIZ

Ultra-Wide 360° Coverage

Secures Multiple Areas at Once

By pointing the lenses in different directions, the camera reduces blind spots so you don’t have to keep adjusting the camera to check different areas.

Area 1 Driveway

Area 2 Backyard

Triple-Lens Co-Detection

Captures the Full Event with Triple Lenses Working Together

When the upper wide-angle lens detects a person, the lower dual lenses automatically zoom in up to 12x on people at distances up to 50m. With triple-lens co-detection, the camera keeps the person in view and records the event without missing any detail.

Auto-Zoom Tracking On People

Dual-View Display With Panorama & Details

Step 1 The fixed lens detects human

Step 2 The moving lens tracks the moving person

EZVIZ CB90f With Co-Detection

Other cameras
Without Co-Detection

Step 1 The fixed lens detects human

Step 2 The moving lens tracks the moving person

EZVIZ CB90f With Co-Detection

Other cameras Without Co-Detection

Tap-To-Zoom Control

Taps the Bigger Picture and Zooms in to See Details

Simply tap any area in the wide view to instantly zoom in for a closer look.The camera automatically focuses on the selected spot, allowing you to quicklycheck important details without manually adjusting the view.

2.8mm 12mm

Always-on Video Mode

Upgrades Your Battery-Powered All-Day Recording

Unlike typical battery cameras that struggle to compromise either recording performance or battery life, this camera features EZVIZ’s groundbreaking AOV technology.

How EZVIZ AOV works?

15 images/second
Normal Speed

Smart Auto
Time-Lapse Video

15 images/second
Normal Speed

WITH AOV

CB8 Lite 4K WiFi-Battery Camera
CB8 Lite 4K WiFi-Battery Camera
CB8 Lite 4K WiFi-Battery Camera

Human Detected

Human Detected

Human Detected

WITHOUT AOV

CB8 Lite 4K WiFi-Battery Camera

No Event = No Recording

CB8 Lite 4K WiFi-Battery Camera
CB8 Lite 4K WiFi-Battery Camera

Human Detected

15 images/second
Normal Speed

CB8 Lite 4K WiFi-Battery Camera

Smart Auto
Time-Lapse Video

CB8 Lite 4K WiFi-Battery Camera

Human Detected

15 images/second
Normal Speed

CB8 Lite 4K WiFi-Battery Camera

Human Detected

15 images/second
Normal Speed

CB8 Lite 4K WiFi-Battery Camera

Smart Auto
Time-Lapse Video

No Event = No Recording

CB8 Lite 4K WiFi-Battery Camera CB8 Lite 4K WiFi-Battery Camera

Human Detected

15 images/second
Normal Speed

CB8 Lite 4K WiFi-Battery Camera

Why EZVIZ AOV helps?

Wider longer detection range

To see and respond to any activity earlier

WITHOUT AOV

WI

WITHOUT AOV

Up to 25 meters3

Only 9 meters

Only 9 meters

Wiser Power Consumption

To adjust recording intervals automatically based on battery power conditions

2-hour sunshine⁴ = All-Year & All-Season Protection

Wiser Power Consumption

To adjust recording intervals automatically based on battery power conditions

Local Familiar Face Recognition

Greets the Ones Matter to You Faster with Local AI

With EZVIZ’s local familiar face recognition, the camera can quickly recognize familiar faces and let you know when someone you know arrives—so alerts are more meaningful and less distracting.5

Local & Free

AI Human Shape & Vehicle Detection

Stays Informed With Smart Alerts For Free

The camera cuts through hours of footages by telling the difference between people, vehicles, and everyday motion. Instead of babysitting the live view, your camera will flag the crucial times and notify you on the EZVIZ App.

Customizable Detection Zones

Accurate Detection Alerts

goods.CB90f_Triple_Kit_148

Saves Your Preferred Setting for Quick Views

Normally, checking specific areas requires manually adjusting the camera each time. With preset locations saved in advance, you can instantly return to important views with just one tap.

Saves preferred pan-tilt angles

Saves zooms ratios for each angle

Front Yard

Door

Garden

Backyard

Drive Way

Smart Color Night Vision

Lights Up Your Night With Bright Colors

Say goodbye to blurry, washed-out night footage. Powered by built-in spotlights, brings the night to life with vivid, full-color clarity, even in near-total darkness.

2 Spotlights | Full-Color Vision

2 IR Lights | Black & White Night Vision

Balanced Image Exposure

Sees Every Detail Clearly in Bright and Dark Areas

Advanced exposure balancing helps the camera adjust to complex lighting conditions. Whether it's bright sunlight or shadowed areas, important details remain visible across the entire scene.

Without adaptative smart light

With adaptative smart light

Active Warning with Sound & Light Strobe

Adds an Extra Layer of Protection for Your Home

When suspicious activity is detected, the camera can trigger flashing red-blue lights and a loud siren to draw attention instantly. This active warning helps alert people nearby and makes unwanted visitors think twice.

Easy Installation

Gets Your Camera Running in Minutes

With a simple mounting design and flexible placement options, you can install the camera quickly without complicated setup. It’s an easy way to start protecting your home right away.

Wall Mount

Camera installed on a wall

Ceiling Mount

Camera installed beneath a ceiling

Pole Mount

Camera installed on a pole

Brings More Convenience for Extra Peace of Mind

Weatherproof Design

Delivers Protection Whenever Rain Or Shine

You have a delivery.

How can I help you?

Two-way

Responds To Visitors With Your Phone

Wi-Fi Network (2.4GHz)

Enables Smooth Video Streaming

Weatherproof Design

Delivers Protection Whenever Rain Or Shine

You have a delivery.

How can I help you?

Two-way

Responds To Visitors With Your Phone

Alexa, show me the backyard

Wi-Fi Network (2.4GHz)

Enables Smooth Video Streaming

Smart Home Integration

Controls the Camera with Your Voice

Local & Cloud Storage

Saves Your Videos With Two Options

H.265 Video Compression

Enjoys Video Experiences with H.2656

Alexa, show me the backyard

Smart Home Integration

Controls the Camera with Your Voice

Local & Cloud Storage

Saves Your Videos With Two Options

H.265 Video Compression

Enjoys Video Experiences with H.2656

We’re committed to protecting with trust

We put security as the primary goal of every product and system that we build, and assiduously improve our practices to better protect your device, data and privacy.

Learn more about our security practices >

End-to-end Data Encryption

AES

Data Encryption

TLS

Data Encryption

Our global certifications in the fields of information security, privacy information security , and cloud security

End-to-end Data Encryption

AES

Data Encryption

TLS

Data Encryption

Our global certifications in the fields of information security ,privacy information security , and cloud security

  1. Use of this feature requires that a compatible local storage card (sold separately) be inserted into the camera.
  2. A compatible local storage card must be purchased separately. Cloud storage services are available only in selected markets; availability should be verified prior to purchase.
  3. When AOV mode is enabled, EZVIZ Lab testing conducted under standard conditions indicates that the camera can detect motion at distances of up to 25 m in daylight and up to 12 m at night. Under the same test conditions, other battery-powered models using PIR-based detection typically provide a detection distance of up to 9 m. Actual detection performance may vary due to environmental conditions and installation factors.
  4. Data from EZVIZ Lab’s test results, under the following standard condition: AM=1.5 , 25°C, 1000W/m² and SMQ. The results are obtained based with the camera operating in AOV mode and the AOV interval set to AUTO. Actual charging efficiency may vary depending on sunlight intensity and other environmental conditions. Actual camera operating hours may also differ based on usage patterns, activity frequency, and environmental factors.
  5. This feature is currently available only after an OTA update.
  6. Based on EZVIZ Lab testing conducted under standard conditions. Video compression efficiency may vary depending on scene complexity, motion frequency, lighting conditions,and other environmental factors.
CB90f Triple Kit
Protects More with Triple Lenses in 3K Clarity
Specifications
Specifications
Model CS-CB90f/SP-R100(5MP+5MP+5MP)
Camera
Image Sensor 1/3” 5-Megapixel Progressive Scan CMOS Sensor
Shutter Speed Self-adaptive shutter
Lens Top Lens: 2.8mm @ F1.6, Field of view : Diagonal 132°, Horizontal 110°, Vertical 60° Bottom Lens1: 6mm @ F1.6, Field of view : Diagonal 66°, IR-cut filter with auto switch Field of view : Diagonal 30°, Horizontal 26°, Vertical 15°
PT Angle Top Lens: Pan: 220°, Manual Tilt: 10°Bottom Lens: Pan: 324°, Tilt: 90°
Minimum Illumination 0.01 Lux @ (F1.6, AGC ON ),0 Lux with IR(* data is obtainedfrom EZVIZ laboratories)
Day & Night IR-cut filter with auto switch
DNR 3D DNR
Black & White Night Vision 35 m
Video & Audio
Max Resolution 2880 × 1620
Frame Rate Max:12fps; Self-Adaptive during network transmission
Video Compression H.265 / H.264
Video Bit Rate Quad-HD; Full-HD; Standard. Adaptive Bit Rate
Audio Bit Rate Self-adaptive
Max. Bitrate 4 Mbps （Total）
Network
Bluetooth Supports
Wi-Fi Standard IEEE802.11b, 802.11g, 802.11n , 802.11ax
Frequency Range 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth Supports 20 MHz
Security WPA-PSK/WPA2-PSK, WPA3-Personal
Transmission Rate 11b: 11Mbps,11g:54Mbps,11n:72Mbps, 11ax:114Mbp
Wi-Fi Pairing AP pairing
Minimum Network Requirement 4 Mbps
Function
Smart Alarm AI Human / Vehicle Shape Detection, Local Familiar Face Recognition
Auto Tracking Supports
Customized Alert Area Supports
Two-way Talk Supports
General Function Anti-Flicker, Heart Beat, Password Protection, Watermark
Storage
Local Storage Supports Local Storage (Up to 512 GB)
Cloud Storage EZVIZ Cloud Storage
General
Operating Conditions -20°C to 50°C (-4°F to 122 °F ), Humidity 95% or less (non-condensing)
Battery Capacity 10400 mAh
IP Grade IP65
Power Supply DC 5V / 2A (Adapter needs to be purchased separately)
Power Consumption Max.10 W
Specifications
Model CS-PSP8-R100-3Mz
Performance Parameter
Power Voltage 5.4V ± 5%
Power Current 1.48A ± 5 %
Open Circuit Voltage 6.8V ± 5%
Short Circuit Current 1.64A ± 5%
Max. Power 8W ± 5%
Interface Type-C
Solar Cell Efficiency 23.50%
Operating Conditions -20°C ~ 60°C (-4°F ~ 140°F) Humidity 90% or less (non-condensing
IP Grade IP65
Solar Cell Type Monocrystalline solar cells
General

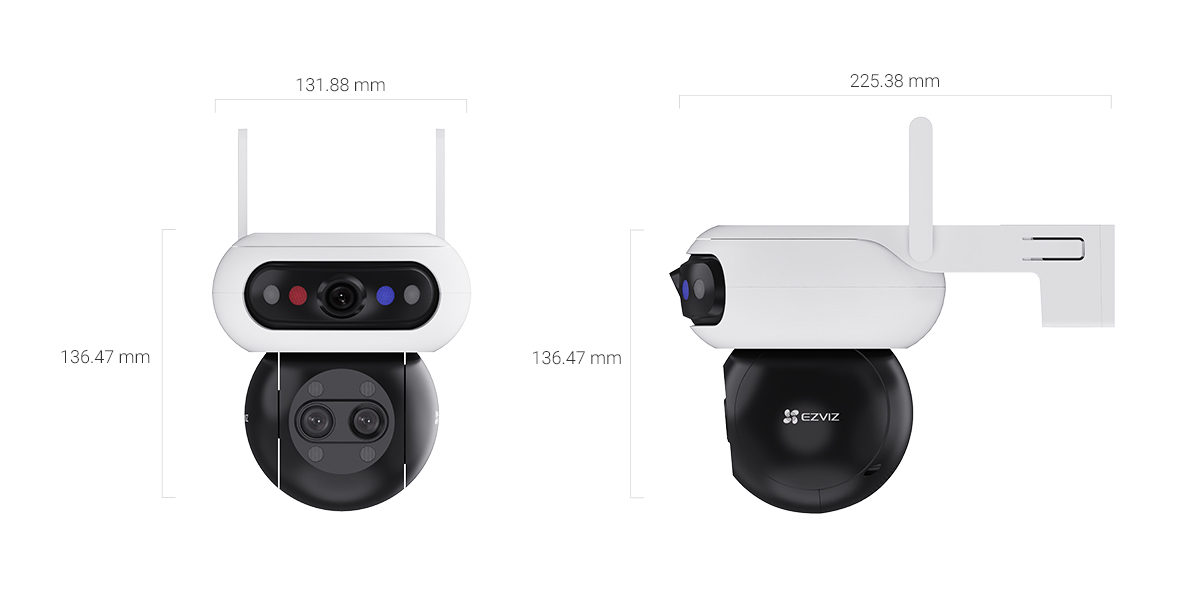

Dimensions CB90f: 135 × 136.5 × 229.5 mm Solar Panel: 267.3 × 186.5 × 17.5 mm
Packaging Dimensions 300 × 220 × 229mm
Net Weight CB90f: 920 g Solar Panel: 428 g
Weight with Package 2232 g
In the box
In the box - CB90f Triple Camera
- Solar Panel 8W
- Drilling Template
- Adjustable Mounting Bracket
- Screw Kit × 2
- Power Cable
- Regulatory Information × 3
- Quick Start Guide × 2
Certifications
Certifications CE / REACH / WEEE / RoHS
