CB30 Dual Smart Wi-Fi Battery Camera

See the Whole Scene, Wherever It Matters

A wire-free battery camera designed to see more, install faster, and protect everyday spaces with intelligent features.

CB30 Dual
Smart Wi-Fi Battery Camera

See the Whole Scene, Wherever It Matters

A wire-free battery camera designed to see more, install faster, and protect everyday spaces with intelligent features.

15 images/second

Time-Lapse Video

Works with EZVIZ Solar Panels² for Longer Standby Time

15 images/second

Time-Lapse Video

Step 1
Detects

Step 2
Auto-Zooms

Step 3
Follows

15 images/second

Time-Lapse Video

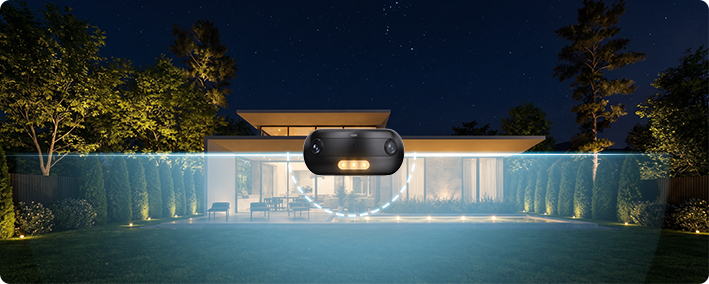

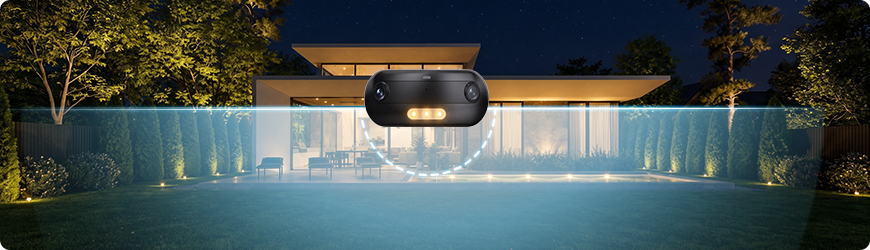

01 180° Blindspot-Free View

Sees the Full Stretch with No Blind Spots

With a 180° blindspot-free view, the CB30 Dual enables you monitor wide open spaces from edge to edge - so kids, pets, visitors, and vehicles stay within sight in one clear image.

02 Dual-Lens 3K Clarity

Reveals Every Detail in One Crystal-Clear View

With dual lenses working together, the CB30 Dual delivers a wider, clearer 3K image that keeps important details easy to recognize - from faces at the door to license plates in the driveway.

Auto-Zooms on Detected Human

Tap-to-Zoom

Human Detected

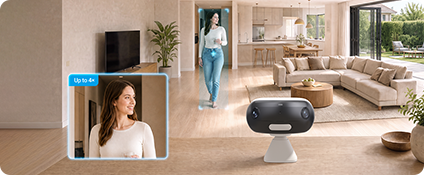

03 Wide-Angle & Close-Up Views with 4x Zoom

Captures the Full Scene While Zooming into Key Details

With panoramic viewing and up to 4x digital zoom, the camera keeps the full sene visible while bringing key details closer. It can auto-zoom on detected people or let users tap any area for an instant close-up.

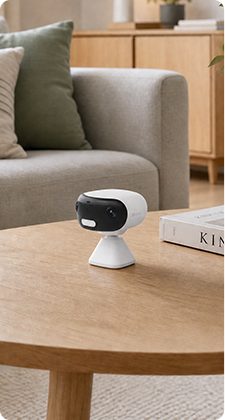

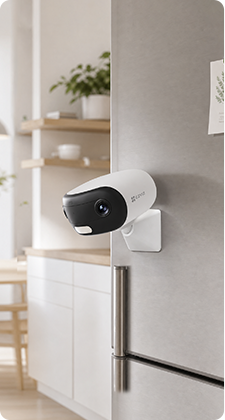

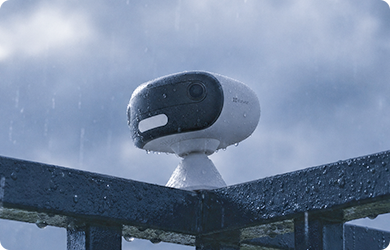

04 Easy Installation with Suitable Accessory

Places it Anywhere for the Best View

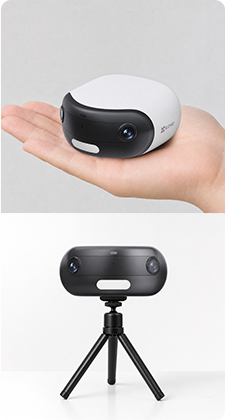

From countertops to metal surfaces to outdoor entryways, the CB30 Dual fits naturally into different spaces with its battery-powered, wire-free design, Built-in ¼ mounting bracket and weather-ready build.

Metal Plate Included

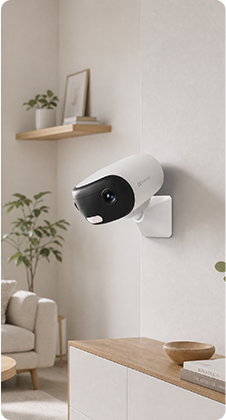

Wall Mount

Corner Mount

Pole Mount

Mounting brackets sold seperately

Wall Mount

Corner Mount

Pole Mount

Mounting brackets sold seperately

05 Always-On Video Mode

Upgrades Your Battery-Powered All-Day Recording

Unlike typical battery cameras that struggle to compromise either recording performance or battery life, this camera features EZVIZ’s groundbreaking AOV technology.

15 images/second
Normal Speed

Smart Auto
Time-Lapse Video

15 images/second
Normal Speed

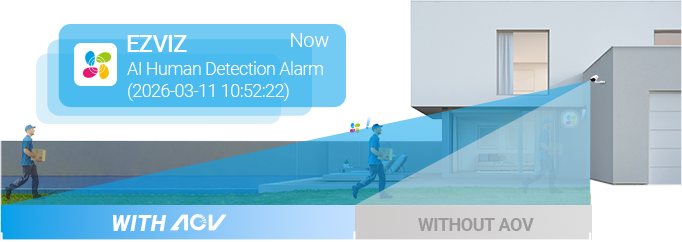

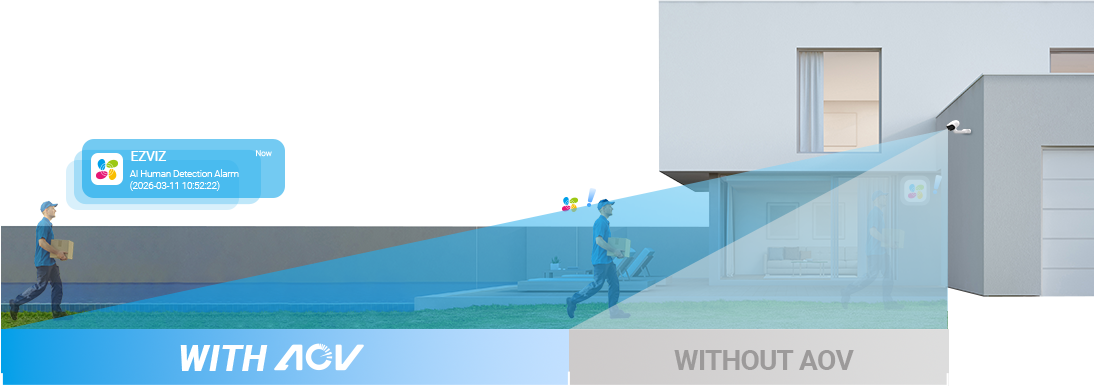

WITH AOV

Human Detected

WITHOUT AOV

No Event = No Recording

Human Detected

Smart Auto
Time-Lapse Video

Human Detected

Smart Auto
Time-Lapse Video

No Event = No Recording

Human Detected

Up to 25 meters⁴

Only 9 meters

Standalone
Battery Camera

All-Day Recording⁴

Battery Camera+Solar Panel

All-Year Nonstop Protection⁵

Standalone Battery Camera

All-Day Recording⁴

Battery Camera + Solar Panel

All-Year Nonstop Protection⁵

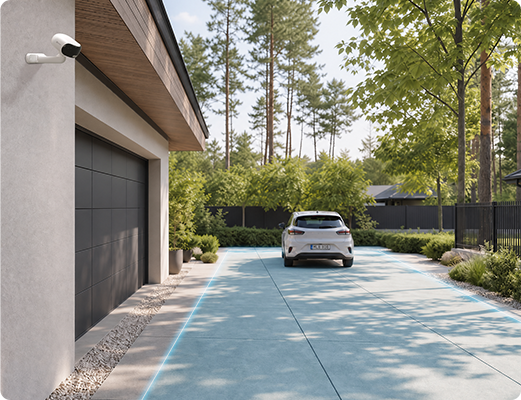

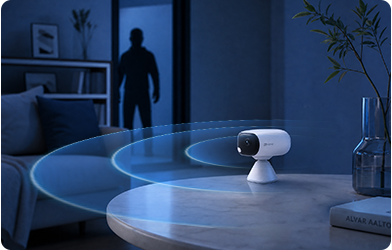

06 AI-Powered Human Shape & Vehicle Detection

Stays Informed with Smart Alerts for Free

The camera cuts through hours of footages by telling the difference between people, vehicles, and everyday motion.
Instead of babysitting the live view, your camera will flag the crucial times and notify you on the EZVIZ App.

07 Smart Color Night Vision

Lights up Your Night with Bright Colors

Say goodbye to blurry, washed-out night footage. Powered by built-in spotights, the CB30 Dual brings the night to life with vivid, full-color clarity, even in near-total darkness.

3 Spotlights

Full-Color Night Vision

180°

Up to 10m

3 IR Lights

Black & White Night Vision

Up to 15m

180°

Up to 10m

3 Spotlights | Full-Color Night Vision

Up to 15m

3 IR Light | Black & White Night Vision

Use of this feature requires that a compatible local storage card (sold separately) be inserted into the camera.
The dual-image fusion effect, designed to eliminate visible stitching, will be available through an OTA update in late September. The current version of the 180° blind-spot-free view may still show a dark line on the screen. The Dual Image Stitching feature requires high performance hardware. Currently, it supports iPhone 12 and subsequent models, along with Android devices powered by Snapdragon 8 Gen1 and higher grade chips. Performance optimizations are in progress for both iOS and Android platforms.
When AOV mode is enabled, EZVIZ Lab testing conducted under standard conditions indicates that the camera can detect motion at distances of up to 25 m in daylight and up to 12 m at night. Under the same test conditions, other battery-powered models using PIR-based detection typically provide a detection distance of up to 9 m. Actual detection performance may vary due to environmental conditions and installation factors.
Based on EZVIZ Lab testing conducted under standard conditions, the CB30 Dual provides a battery life of 15 days when AOV mode is enabled with the automatic interval setting.Actual battery performance may vary due to environmental conditions and usage patterns, including event frequency, recording duration, and live viewing.
Data from EZVIZ Lab's test results, under the following standard condition: AM=1.5, 25°C, 1000W/m² and SMQ. The results are obtained based with the camera operating in AOV mode and the AOV interval set to AUTO. Actual charging efficiency may vary depending on sunlight intensity and other environmental conditions. Actual camera operating hours may also differ based on usage patterns, activity frequency, and environmental factors.
Based on EZVIZ Lab testing conducted under standard conditions. Video compression efficiency may vary depending on scene complexity, motion frequency, lighting conditions, and other environmental factors.

CB30 Dual

Smart Wi-Fi Battery Camera

Specifications

Specifications
Model	CS-CB30-R100-1Q55W
Camera
Image Sensor	1/3" 5-Megapixel Progressive Scan CMOS Sensor
Minimum Illumination	0.01 Lux @(F1.6, AGC ON), 0 Lux with IR
Shutter Speed	Self-adaptive shutter
Lens	2.8 mm@ F1.6, Horizontal angle: 180°, Vertical angle:56°
Day & Night	IR-cut filter with auto switch
DNR	3D DNR
Night Vision	IR Distance: 15 m, Color Night Vision Distance: 10 m
Video & Audio
Max Resolution	2880 × 1620
Frame Rate	15fps. Self-Adaptive during network transmission
Video Compression	H.265 / H.264
Video Bit Rate	Quad-HD+; Full HD; Hi-Def; Standard Adaptive bit rate.
Audio Bit Rate	Self-Adaptive
Max. Bitrate	5 Mbps(Total)
Network
Bluetooth	Supports
Wi-Fi Standard	IEEE802.11b, 802.11g, 802.11n
Frequency Range	2.4 GHz ~ 2.4835 GHz
Channel Bandwidth	Supports 20 MHz
Security	WPA-PSK/WPA2-PSK, WPA3-Personal
Transmission Rate	11b: 11 Mbps, 11g: 54 Mbps, 11n: 72 Mbps, 11ax: 114 Mbps
Wi-Fi Pairing	AP pairing
Protocol	EZVIZ Cloud Proprietary Protocol
Interface Protocol	EZVIZ Cloud Proprietary Protocol
Minimum Network Requirement	10 Mbps
Function
Smart Alarm	AI Human Detection, Vehicle Detection
Two-way Talk	Supports
General Function	Anti-Flicker, Heart Beat, Password Protection, Watermark
Storage
Local Storage	Supports MicroSD slot for local storage (Up to 512G)
Cloud Storage	EZVIZ Cloud Storage
General
Operating Conditions	-20°C to 50°C (-4°F to 122°F), Humidity 95% or less (non-condensing)
IP Grade	IP65
Power Supply	DC 5V/2A (Compatible power adapter needs to be purchased separately)
Battery Capacity	5200 mAh
Power Consumption	Max.10W

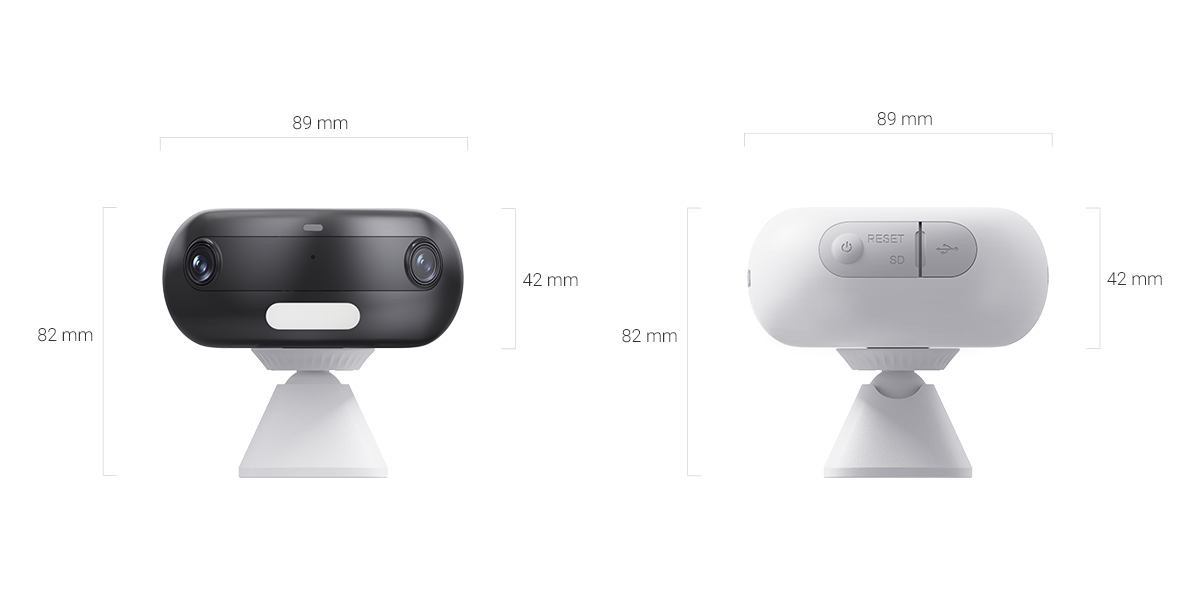

Product Dimensions	89mm × 82mm × 42mm
Packaging Dimensions	111mm × 67mm × 179mm
Weight	Product: 234g; With package: 485g
In the box
In the box	- Camera (×1)
	- Screw Base (×1)
	- Pin (×1)
	- Power Cable (×1)
	- Pressure-Assist Patch (×2)
	- Screw Kit (×1)
	- Foam Sticker (×2)
	- Metal Plate (×1)
Certifications
Certifications	CE / REACH / WEEE / RoHS
