| Specifications |
|---|
| Model | CS-CB30-R100-1Q55W |
|---|
| Camera |
|---|
| Image Sensor | 1/3" 5-Megapixel Progressive Scan CMOS Sensor |
|---|
| Minimum Illumination | 0.01 Lux @(F1.6, AGC ON), 0 Lux with IR |
|---|
| Shutter Speed | Self-adaptive shutter |
|---|
| Lens | 2.8 mm@ F1.6, Horizontal angle: 180°, Vertical angle:56° |
|---|
| Day & Night | IR-cut filter with auto switch |
|---|
| DNR | 3D DNR |
|---|
| Night Vision | IR Distance: 15 m, Color Night Vision Distance: 10 m |
|---|
| Video & Audio |
|---|
| Max Resolution | 2880 × 1620 |
|---|
| Frame Rate | 15fps. Self-Adaptive during network transmission |
|---|
| Video Compression | H.265 / H.264 |
|---|
| Video Bit Rate | Quad-HD+; Full HD; Hi-Def; Standard Adaptive bit rate. |
|---|
| Audio Bit Rate | Self-Adaptive |
|---|
| Max. Bitrate | 5 Mbps(Total) |
|---|
| Network |
|---|
| Bluetooth | Supports |
|---|
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
|---|
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
|---|
| Channel Bandwidth | Supports 20 MHz |
|---|
| Security | WPA-PSK/WPA2-PSK, WPA3-Personal |
|---|
| Transmission Rate | 11b: 11 Mbps, 11g: 54 Mbps, 11n: 72 Mbps, 11ax: 114 Mbps |
|---|
| Wi-Fi Pairing | AP pairing |
|---|
| Protocol | EZVIZ Cloud Proprietary Protocol |
|---|
| Interface Protocol | EZVIZ Cloud Proprietary Protocol |
|---|
| Minimum Network Requirement | 10 Mbps |
|---|
| Function |
|---|
| Smart Alarm | AI Human Detection, Vehicle Detection |
|---|
| Two-way Talk | Supports |
|---|
| General Function | Anti-Flicker, Heart Beat, Password Protection, Watermark |
|---|
| Storage |
|---|
| Local Storage | Local storage up to 512 GB |
|---|
| Cloud Storage | EZVIZ cloud storage |
|---|
| General |
|---|
| Operating Conditions | -20°C to 50°C (-4°F to 122°F), Humidity 95% or less (non-condensing) |
|---|
| IP Grade | IP65 |
|---|
| Power Supply | DC 5V/2A (Compatible power adapter needs to be purchased separately) |
|---|
| Battery Capacity | 5200 mAh |
|---|
| Power Consumption | Max.10W |
|---|
| Product Dimensions | 89mm × 82mm × 42mm |
|---|
| Packaging Dimensions | 111mm × 67mm × 179mm |
|---|
| Weight | Product: 234g; With package: 485g |
|---|
| Performance Parameter |
|---|
| Power Voltage | 5.7 V |
|---|
| Power Current | 555 mA ± 5% |
|---|
| Open Circuit Voltage | 6.4 V ± 5% |
|---|
| Short Circuit Current | 604 mA ± 5% |
|---|
| Max. Power | 3 W |
|---|
| Interface | Type-C |
|---|
| Solar Cell Efficiency | ≥ 22% |
|---|
| Operation Temperature | -20°C ~60°C(-4°F~140°F), Humidity 90% or less (non-condensing) |
|---|
| IP Grade | IP65 |
|---|
| Mechanical Data |
|---|

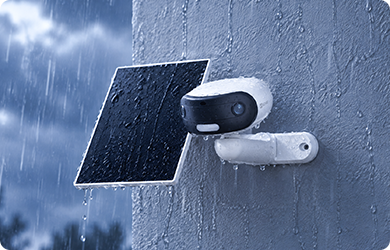

| Solar Cell Type | Monocrystalline solar cells |
|---|
| Power Cable Length | 3 meters |
|---|

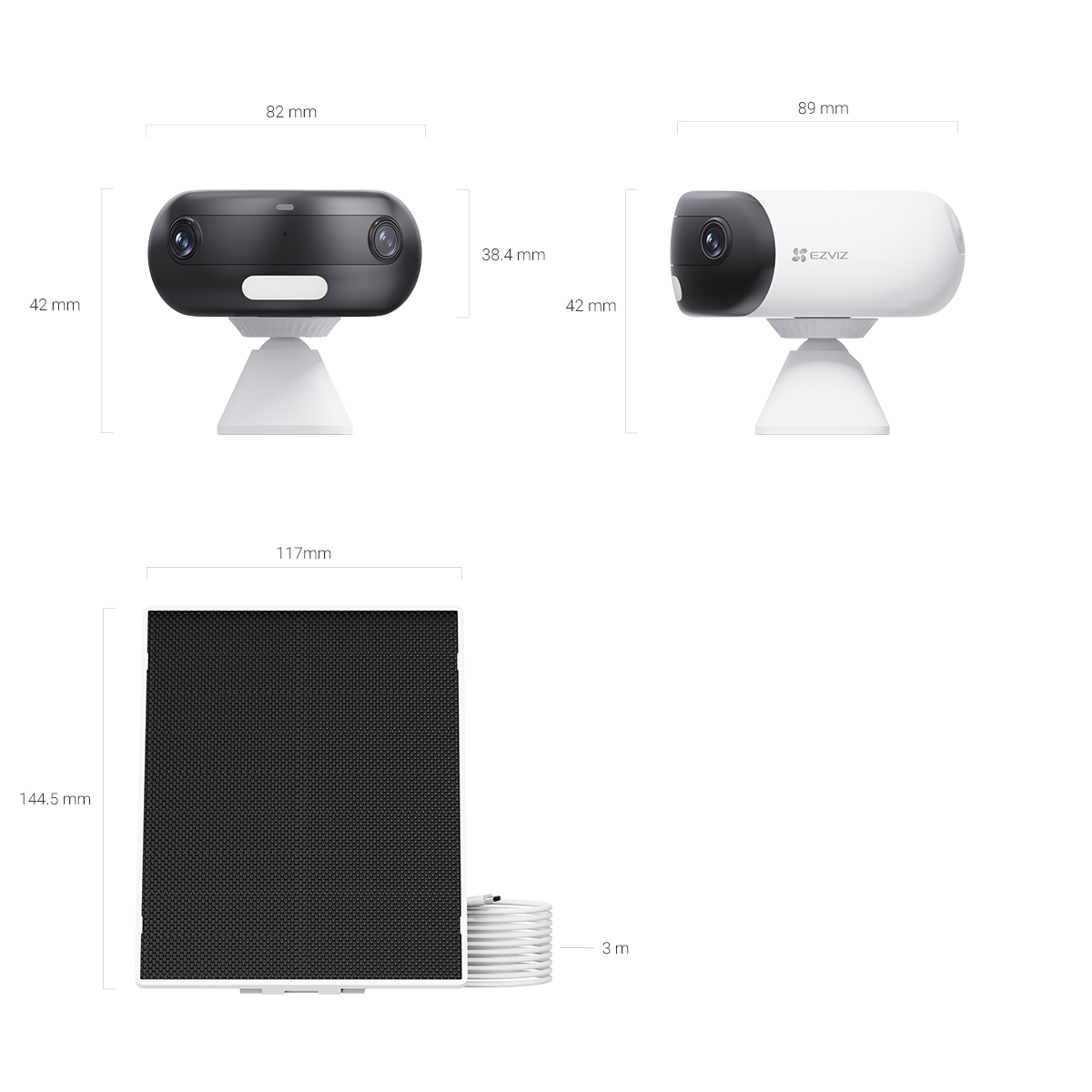

| Product Dimensions | Camera: 89mm × 82mm × 42mm; Solar Panel: 144.5 × 117 × 14.5 mm |
|---|
| Packaging Dimensions | 169 × 121 × 198 mm |
|---|
| Weight | Camera Net Weight: 234 g; Weight with Package: 1023 g |
|---|
| In the box |
|---|
| In the box | - Camera (×1) |
|---|
| - Solar Panel 3W (×1) |
| - Mounting Bracket (×1) |
| - Screw Base (×1) |
| - Pin (×1) |
| - Power Cable (×1) |
| - Pressure-Assist Patch (×2) |
| - Screw Kit (×1) |
| - Foam Sticker (×2) |
| - Metal Plate (×1) |
| Certifications |
|---|
| Certifications | CE / WEEE / RoHS / REACH |
|---|
