C9c Dual 2K

Detail

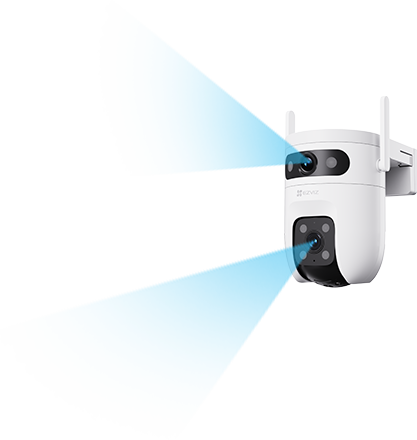

C9c Dual 2k Dual-Lens Pan & Tilt Wi-Fi Camera

2.8mm Wide-Angle Lens

Manually-Adjustable 240° Horizontal Rotation and 15° Preset Fixed Tilt Angle for Glare-Free Viewing

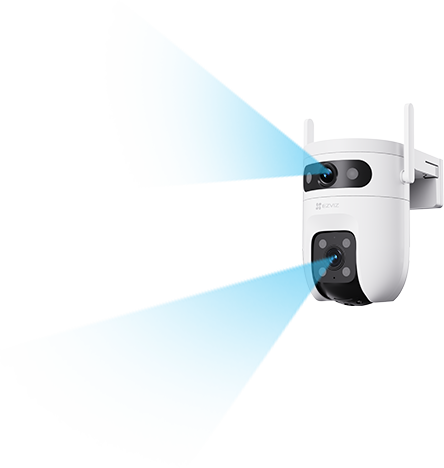

C9c Dual 2k Dual-Lens Pan & Tilt Wi-Fi Camera

6mm Telephoto Lens
Motorized Pan & Tilt for 360° View

C9c Dual 2k Dual-Lens Pan & Tilt Wi-Fi Camera

2.8mm Wide-Angle Lens

Manually-Adjustable 240° Horizontal Rotation and 15° Preset Fixed Tilt Angle for Glare-Free Viewing

C9c Dual 2k Dual-Lens Pan & Tilt Wi-Fi Camera

6mm Telephoto Lens
Motorized Pan & Tilt for 360° View

C9c Dual 2k Dual-Lens Pan & Tilt Wi-Fi CameraC9c Dual 2k Dual-Lens Pan & Tilt Wi-Fi Camera
C9c Dual 2k Dual-Lens Pan & Tilt Wi-Fi Camera

F/2.8mm Wide-angle View

C9c Dual 2k Dual-Lens Pan & Tilt Wi-Fi Camera

F/6mm Close-up View

C9c Dual 2k Dual-Lens Pan & Tilt Wi-Fi Camera

F/6mm Digital Zoom

Three useful night vision modes will suit any need

C9c Dual 2k Dual-Lens Pan & Tilt Wi-Fi Camera

Color Mode

C9c Dual 2k Dual-Lens Pan & Tilt Wi-Fi Camera

Smart Mode

Auto-switch upon motion detection

C9c Dual 2k Dual-Lens Pan & Tilt Wi-Fi Camera

Black-and-White Mode

Smartly saves space without missing any moment

With EZVIZ’s enhanced saving mode⁴ with all-day recording, the camera captures just 1 frame per second during quiet moments to conserve storage. When an event is detected, it automatically switches to high-frame-rate recording for smooth, detailed videos.

More than

event-only recording

Less than

24/7 storage

1FPS

NO EVENT

1FPS

NO EVENT

Self-Adaptive FPS

EVENT DETECTED

1FPS

NO EVENT

EZVIZ H9c 3K Dual-Lens Pan & Tilt Wi-Fi Camera
C9c Dual 2k Dual-Lens Pan & Tilt Wi-Fi Camera

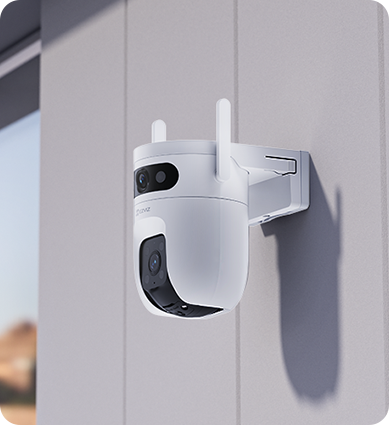

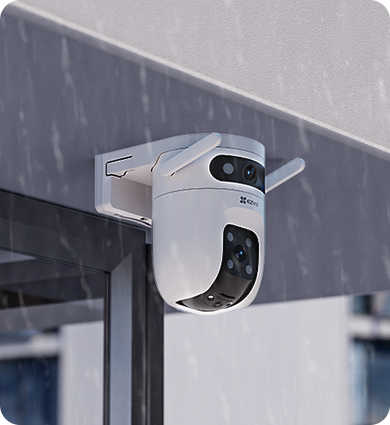

Wall Mount

C9c Dual 2k Dual-Lens Pan & Tilt Wi-Fi Camera

Ceiling Mount

C9c Dual 2k Dual-Lens Pan & Tilt Wi-Fi Camera C9c Dual 2k Dual-Lens Pan & Tilt Wi-Fi Camera

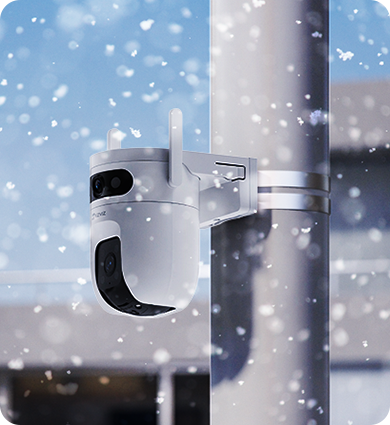

Pole Mount
(Sold separately)

C9c Dual 2K
Double the lenses, double the protection
C9c Dual 2k Dual-Lens Pan & Tilt Wi-Fi Camera
Specifications
Specifications
ModelCS-C9c-R105-8H33WFL
Camera
Image Sensor1/3” Progressive Scan CMOS
Shutter SpeedSelf-adaptive shutter
LensTop lens: 2.8 mm @ F1.6, viewing angle: diagonal 110°, horizontal 96°, vertical 54° Bottom lens: 6 mm @ F1.6, viewing angle: diagonal 60°, horizontal 52°, vertical 28°
PT AngleTop Lens: 0~240° Pan (manual adjustment) & 15° Preset fixed tilt angle, Bottom Lens: Pan: 350°, Tilt: 80°
Minimum Illumination0.5 Lux @(F1.6, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories)
Lens MountM12
Day & NightIR-cut filter with auto switch
DNR3D DNR
WDRDigital WDR
Black & White Night30m / 98ft
Color Night VisionUp to 40 m
Number of LightsTop Lens:2 spotlights and 2 IR lights, Bottom Lens: 2 spotlights and 2 IR lights
Video & Audio
Max. Resolution2K (2304 × 1296)
Frame RateSelf-adaptive during network transmission
Video CompressionH.265 / H.264
H.265 TypeMain profile
Video Bit RateUltra-HD; Hi-Def; Standard. Adaptive bit rate.
Audio Bit RateSelf-adaptive
Network
Wi-Fi StandardIEEE802.11a, 802.11b, 802.11g, 802. 11n, 802.11ac, 802.11ax
Frequency Range2.4 GHz ~ 2.4835 GHz, 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz
Channel BandwidthSupports 20 MHz @ 2.4G, Supports 20 / 40 / 80 MHz @ 5G
SecurityWPA-PSK/WPA2-PSK
Transmission Rate1b: 11 Mbps, 11a/g: 54 Mbps, 11n: 150 Mbps, 11ac: 433 Mbps, 11ax: 600 Mbps
Wi-Fi PairingAP pairing
ProtocolEZVIZ Cloud Proprietary Protocol
Interface ProtocolEZVIZ Cloud Proprietary Protocol
Wired NetworkRJ45 × 1 (10M / 100M Adaptive Ethernet Port)
Function
Smart AlarmAI-powered human / vehicle shape detection; motion Detection
PT FunctionCo-detection for auto tracking / One-tap control for linked view change / Preset points / Patrol mode
Customized Alert AreaSupports
Two-way TalkSupports
Active DefenseSupports
General FunctionAnti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark
Storage
Storage Saving ModeSupports
Local StorageSupports microSD card (max. 512 GB)
Cloud StorageSupports EZVIZ CloudPlay Storage, (Subscription required)
General
Operating Conditions-30°C to 50°C ( -22 °F to 122 °F ), Humidity 95% or less (non-condensing)
IP GradeWeatherproof Design
Power SupplyDC 12V / 1.5A
Power ConsumptionMax. 18 W
Dimensions147 × 116 × 142 mm (5.71 × 4.57 × 5.59 inch)
Packaging Dimensions150 × 150 × 194mm (5.90 × 5.90 × 7.64 inch)
WeightNet Weight: 626 (22.08 oz), With Package: 960 g(33.86 oz)
In the box
In the box- C9c Dual 2K Camera
- Drill Template
- Screw Kit
- Waterproof Kit
- Power Adapter
- Regulatory Information × 2
- Quick Start Guide
Certifications
CertificationsCE / UL / WEEE / RoHS / REACH
