EB8 Pro Ranger Kit

Detail

The ultimate 4K ranger, built for the wildlife and wilderness

True to its name, the EB8 Pro Ranger is like a trusted scout watching over the wild. Whether deep in the forest or across open fields, it quietly captures every moment in stunning 4K details. Its smart dual connectivity keeps you connected, whether through Wi-Fi or roaming 4G, so you’re always in the know no matter how deep you venture into the nature. Powered by advanced AOV technology with an included solar panel, it works tirelessly around the clock, guarding your property and revealing the secret lives of wildlife in their natural playground.

Data comes from EZVIZ Lab's test under standard conditions and may vary due to environmental factors and the frequency of camera activities.
The GPS function is able to run properly only when the camera is installed in an open, outdoor environment. If you install the camera in an indoor space inside a building, the GPS may not function properly.
To use the wild animal detection feature, users need to pay for additional subscriptions stated on the EZVIZ App. The animal detection feature is currently capable of capturing the common shapes of up to 21 animal species, including horse, sheep, pig, goose, zebra, bird, elephant, bear, crocodile, leopard, camel, cattle, monkey, snake, hippopotamus, lion, tiger, kangaroo, raccoon, fox, deer, and wolf. Note that the function is available in certain countries, please confirm before purchasing.
The EB8 Pro Ranger camera only supports auto smart tracking on detected humans based on its AI-powered human shape algorithm.
The local storage card must be purchased separately. The cloud storage service is only available in certain markets. Please verify the availability before making a purchase.
To use this function, a compatible microSD card (sold separately) must be inserted into the camera.
When the AOV mode is enabled, according to EZVIZ Lab's test results under standard conditions, the camera is able to detect movements distance of up to 25 meters during the day, and up to 12 meters during the night time. Other tested battery models that use PIR-based detection usually have a detection distance of up to 9 meters. The actual detection range may differ due to environmental factors.
Data from EZVIZ Lab’s test results, under the following standard condition: AM=1.5, 25°C, 1000W/m², SMQ. The data is obtained based on the camera set on AOV mode and with the AOV interval set as AUTO. The actual charging efficiency may vary depending on sunlight intensity and other environmental factors, while the actual hours of camera use may also differ due to the frequency of camera activities and other environmental factors.
Amazon Alexa and Google Assistant are not available in certain languages and countries.
Data from EZVIZ Lab's test results under standard conditions. The video compression efficiency will vary with the frequency and complexity of the activity captured, and other environmental factors.

EB8 Pro Ranger Kit

The ultimate 4K ranger, built for the wildlife and wilderness

EZVIZ EB8 Pro Ranger + Solar Panel 8W - 4G & Wi-Fi Smart Home Battery Camera Kit

Specifications

Specifications
Model	CS-EB8-R200-1M8W4GA-CF
Camera
Image Sensor	1/2.8 8-Megapixel Progressive Scan CMOS Sensor
Minimum Illumination	0.01 Lux @(F1.2, AGC ON), 0 Lux with IR
Shutter Speed	Self-adaptive shutter
Lens	4mm@ F1.2 Diagonal angle: 104°, Horizontal angle: 83° Vertical angle:44°
PT Angle	Pan: 340°, Tilt: 75°
Day & Night	IR-cut filter with auto switch
DNR	3D DNR
Night Vision	15 m
Video & Audio
Max Resolution	4K (3840 × 2160)
Frame Rate	15fps. Self-adaptive during network transmission
Video Compression	H.265 / H.264
Video Bit Rate	Ultra-HD; Full HD; Hi-Def; Adaptive bit rate.
Audio Bit Rate	Self-adaptive
Max. Bitrate	4 Mbps
Function
Smart Alarm	AI-powered human shape detection, AI-powered vehicle shape detection, AI-powered wild animal detection
Two-Way Talk	Supports
General Function	Anti-Flicker, Heart Beat, Password Protection, Watermark
Network
Wi-Fi Standard	IEEE802.11b, 802.11g, 802.11n, 802.11ax
Frequency Range	2.4 GHz~2.4835 GHz
Channel Bandwidth	Supports 20 MHz
Security	64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Transmission Rate	11b: 11Mbps, 11g: 54Mbps, 11n: 72Mbps, 11ax: 114Mbps
Wi-Fi Pairing	AP pairing
Protocol	EZVIZ Cloud Proprietary Protocol
Interface Protocol	EZVIZ Cloud Proprietary Protocol
Minimum Network Requirement	8 Mbps
4G LTE Frequency Bands	EU: LTE FDD: B1/B3/B5/B7/B8/B20/B28, LTE TDD: B38/B40/B41 , LA： LTE TDD: B1/B2/B3/B4/B5/B7/B8/B12/B 17/B28/B66, LTE TDD: B38/B40
Storage
Local Storage	Supports microSD card (max. 512 GB)
Cloud Storage	Supports EZVIZ CloudPlay storage (Subscription required)
General
Operating Conditions	-20 °C to 50 °C (-4 °F to 122 °F), Humidity 95% or less (non-condensing)
IP Grade	IP65
Power Supply	DC 5V/2A, (Adapter needs to be purchased separately)
Battery Capacity	10,400 mAh
Power Consumption	Max.10 W
Specifications
Model	CS-PSP8-R100-3M
Performance Parameter
Power Voltage	5.4V ± 5%
Power Current	1.48A ± 5%
Open Circuit Voltage	6.8V ± 5%
Short Circuit Current	1.64A ± 5%
Max. Power	8W ± 5%
Interface	Type-C
Solar Cell Efficiency	≥ 22%
Operation Temperature	-20°C ~ 60°C (-4°F ~ 140°F) Humidity 90% or less (non-condensing)
IP Grade	IP65
Solar Cell Type	Monocrystalline solar cells
Power Cable Length	3 meters
General

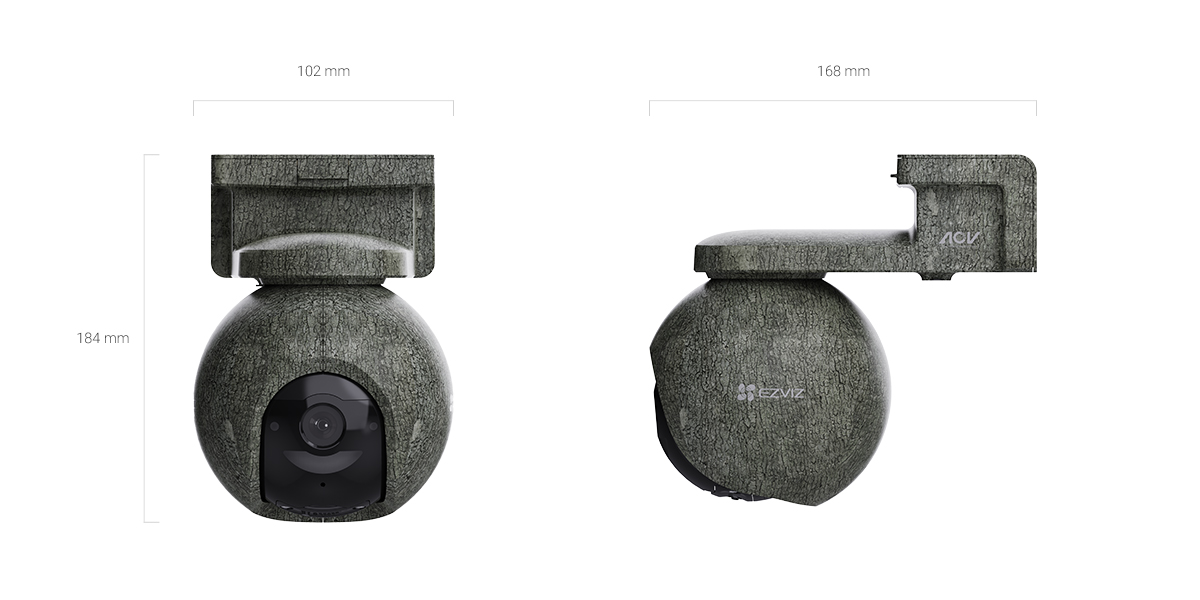

Product Dimensions	Camera: 184 × 102 × 168 mm (7.24 × 4.02 × 6.61 inch)
Product Dimensions	Solar Panel: 267.3 × 186.5 × 17.5 mm (10.51 × 5.83 × 0.69 inch)
Packaging Dimensions	300 × 204 × 175 mm (11.81 × 8.03 × 6.89 inch)
Product Weight	Camera: 810 g (28.57 oz)
Product Weight	Solar panel: 428 g (15.10 oz)
Weight with Package	2131 g (75.18 oz )
In the box
In the box	- EB8 Pro Ranger Camera
	- Solar Panel 8W
	- Drilling Template
	- Adjustable Mounting Bracket
	- Clamp Band × 2
	- Clamp Adapter Bracket
	- Screw Kit x 2
	- Power Cable
	- Quick Installation Guide
	-Regulatory Information x 3
	- Quick Start Guide
Certifications
Certifications	CE / REACH / WEEE / RoHS

4G & Wi-Fi Smart Home Battery Camera Kit

The ultimate 4K ranger, built for the wildlife and wilderness

EB8 Pro Ranger

Solar Panel 8W

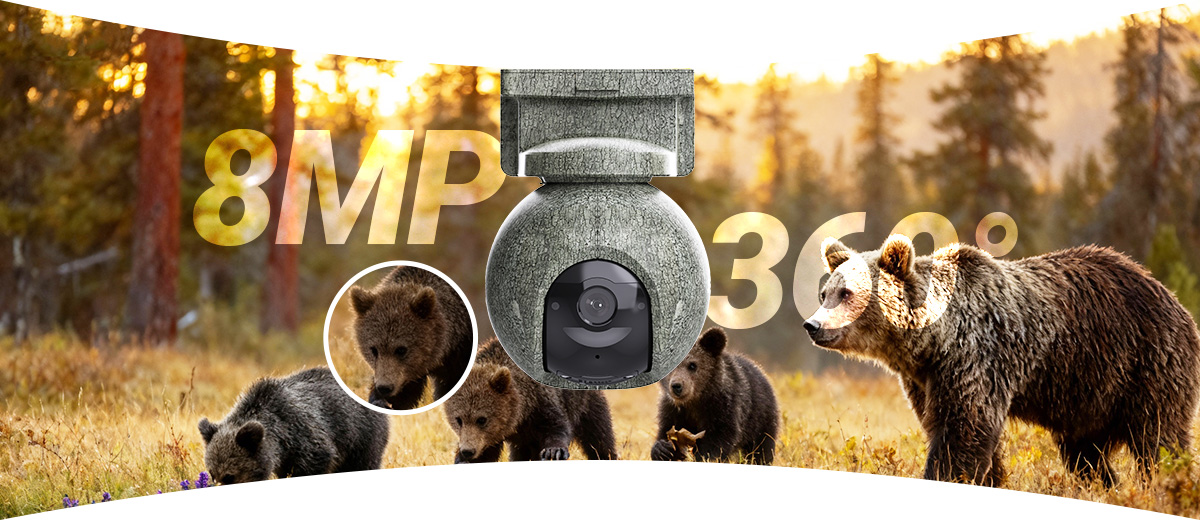

Eagle eye with 4K, sharp and boundless

Stay alert to wild visitors for utmost peace of mind

From strangers to cars, you’ll know it first

Follow every action for a complete activity

The game-changing technology for battery-powered protection

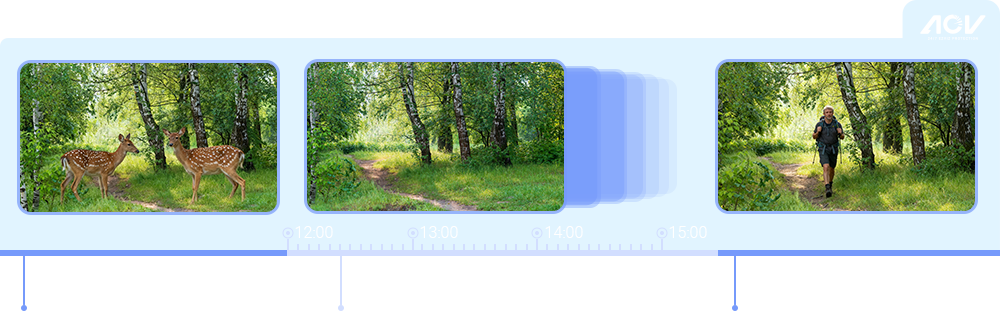

01 Always records, scenes or events

02 Always protects, far or near

Standard

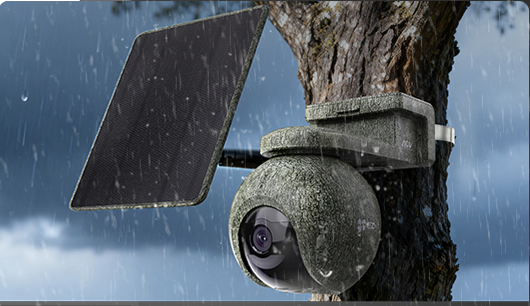

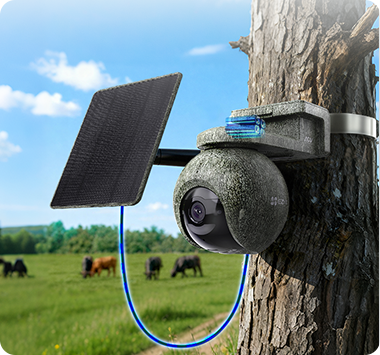

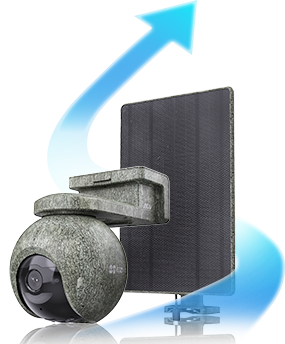

Solar-powered security that never takes a moment off

What you face now

What EZVIZ offers

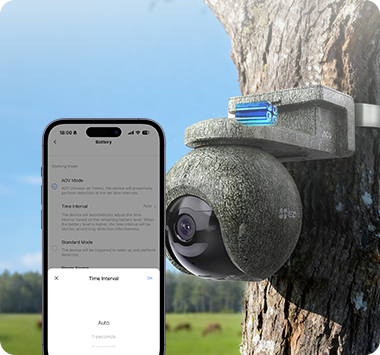

AOV Auto

AOV Auto

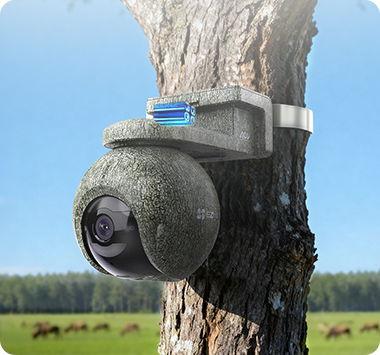

See wildlife clearly, without disturbing the wild

Capture every moment in perfect light

More convenience for various needs
